PITLESS WEIGHBRIDGE / SURFACE MOUNTED WEIGBRIDGES

Description

PITLESS WEIGHBRIDGE / SURFACE MOUNTED WEIGBRIDGES

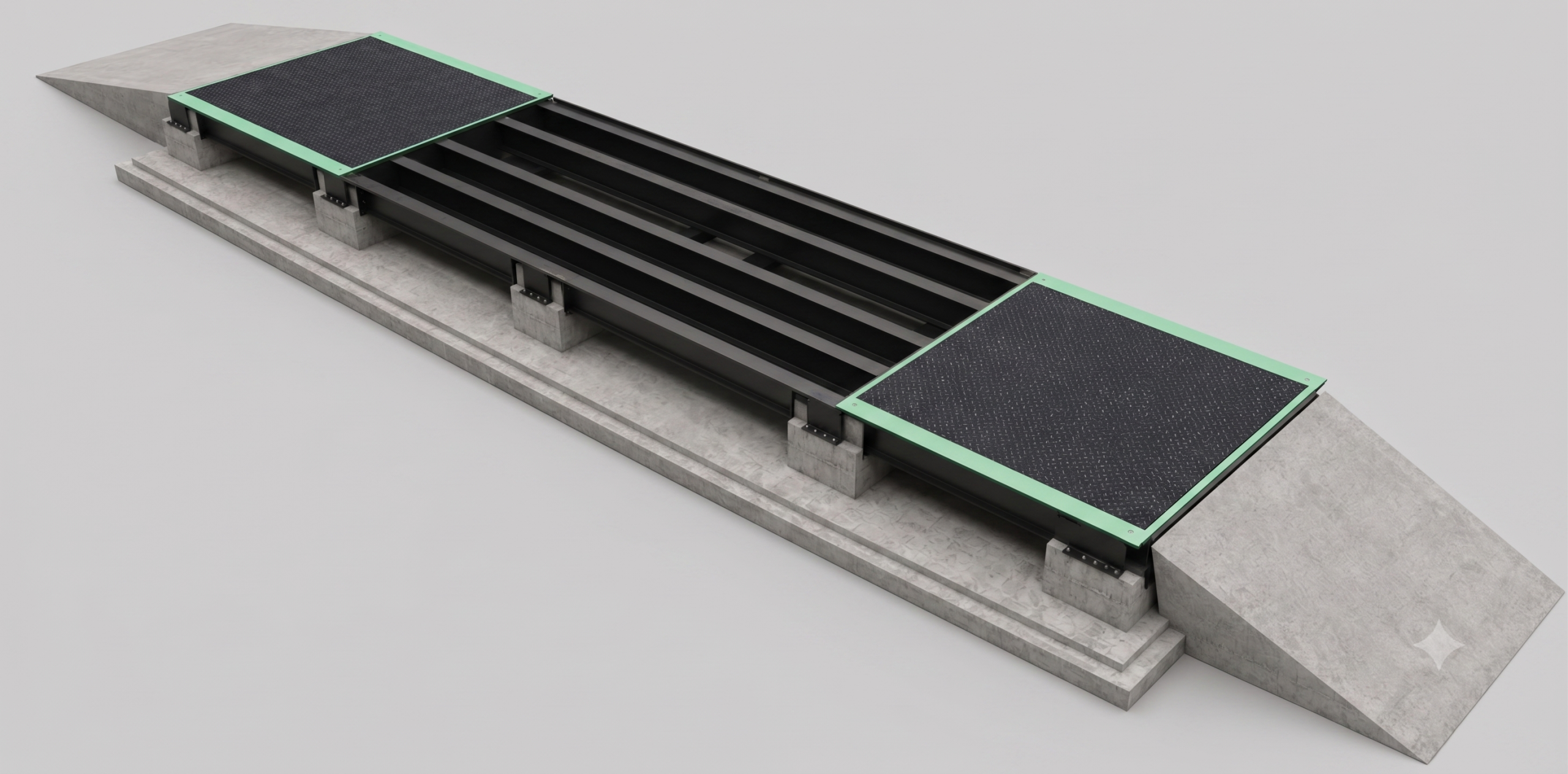

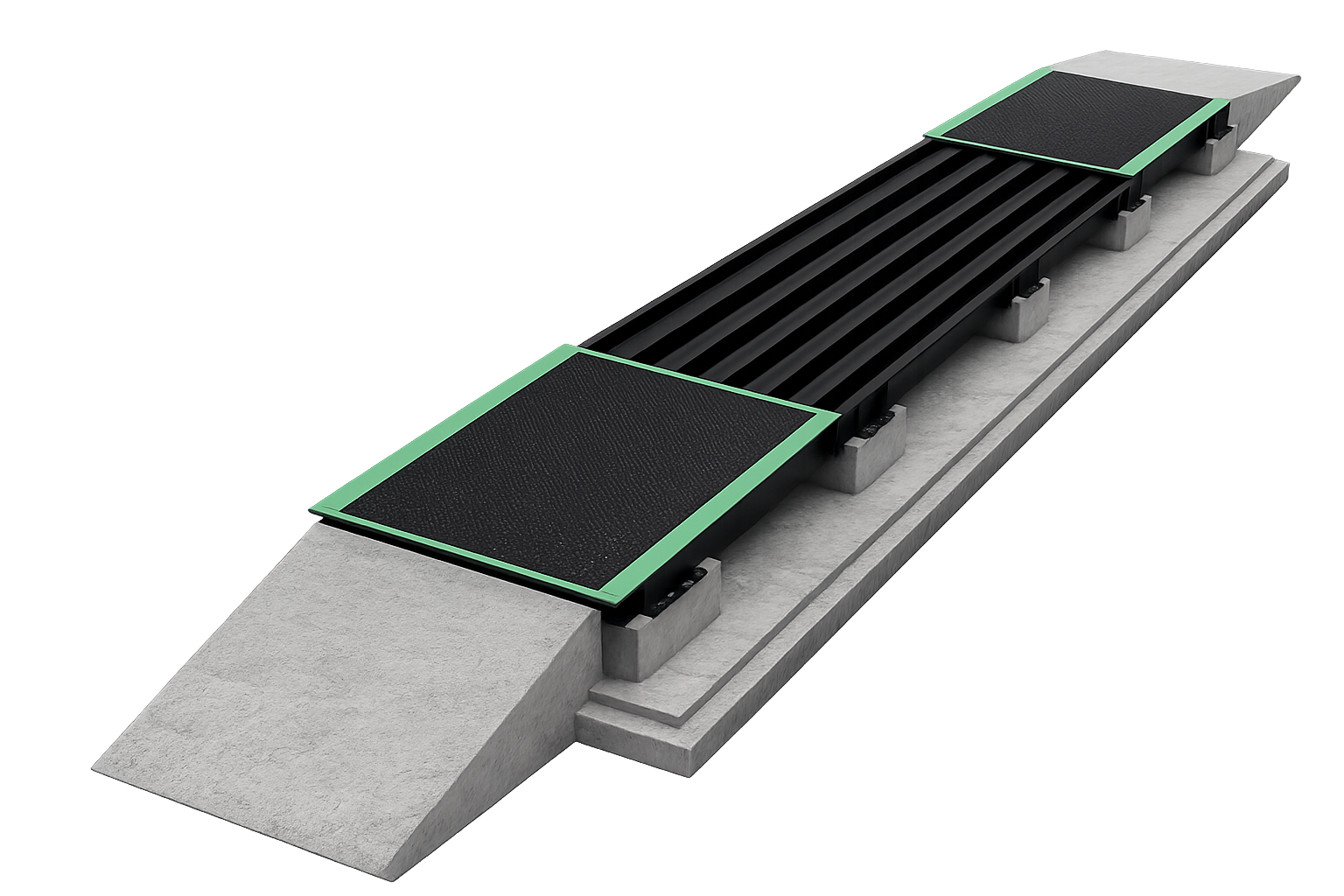

A pitless (surface mounted) weighbridge is an above ground vehicle weighing system installed on a specially designed RCC foundation. Unlike pit type weighbridges, this system does not require a specialized weighing pit; however, it necessarily requires substantial RCC civil works to ensure structural stability, accuracy, and long term performance.

The RCC foundation shall include load cell pedestals, longitudinal and transverse beams, tie beams, and a rigid base structure designed to safely transfer static and dynamic vehicle loads to the ground. These RCC elements are critical to maintaining platform alignment, preventing settlement, and ensuring consistent weighing accuracy.

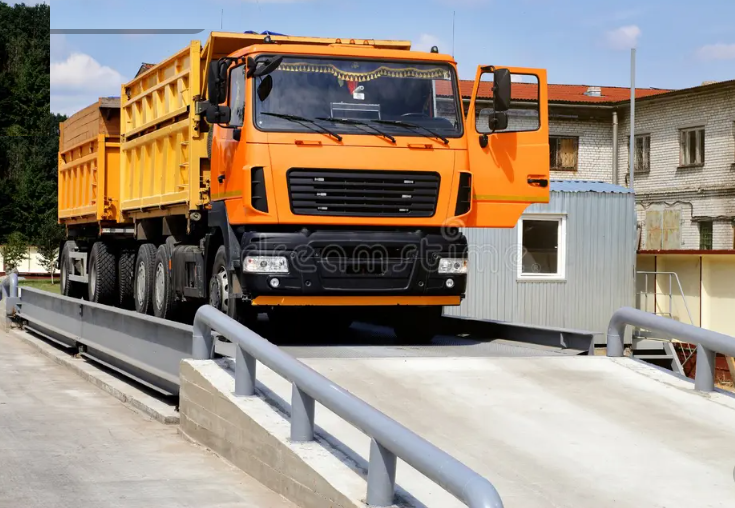

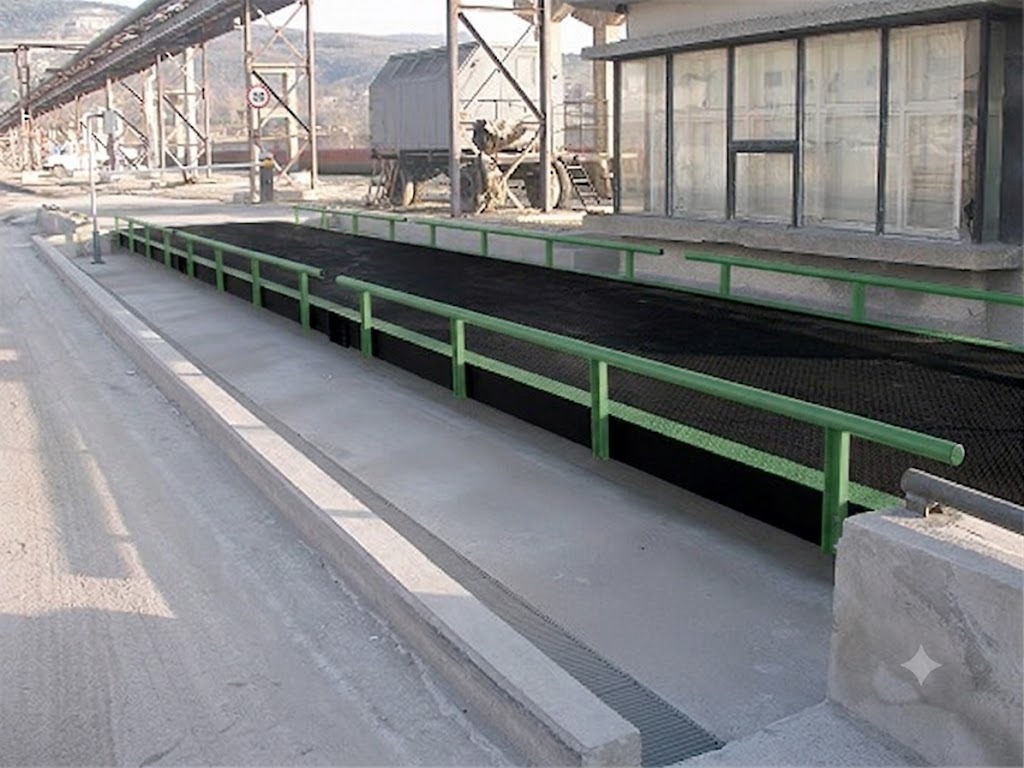

Since the platform is installed above ground level, RCC concrete approach ramps are mandatory on both entry and exit sides of the weighbridge. The ramps shall be designed to suit the rated capacity, axle loads, and traffic frequency, with appropriate slope, surface finish, and reinforcement as per approved drawings and applicable standards.

Proper drainage provisions shall be incorporated within the RCC foundation and ramp structure to avoid water accumulation around load cells and structural members. All RCC works shall be executed in accordance with approved structural drawings, relevant codes, and manufacturer recommendations.

Our pitless weighbridge features a heavy duty steel platform engineered for strength, durability, and long term performance under continuous vehicle traffic. Integrated with high precision load cells and advanced digital indicators, the system delivers accurate, stable, and repeatable weight measurements for all types of commercial vehicles.

By choosing a pitless weighbridge, businesses benefit from faster installation, reduced civil costs, easier maintenance access, and reliable weighing accuracy. It is a practical and efficient solution for streamlining vehicle weighing operations while maintaining operational flexibility and compliance with industry standards.

Benefits of Pitless Weighbridge

Minimal Excavation or Pit Construction:
Eliminates the need for deep excavation, making it suitable for sites with high groundwater levels or poor soil conditions.

Robust RCC Foundation Support:
RCC beams, tie beams, and load cell pedestals provide excellent structural stability, ensuring long term durability and consistent weighing accuracy.

RCC Ramps for Smooth Access:
Concrete approach ramps ensure controlled vehicle entry and exit, reducing impact loads and improving repeatability of weight measurements.

Reduced Waterlogging Risk:
Above ground installation minimizes water accumulation issues commonly associated with pit type weighbridges.

Easy Inspection and Maintenance:
Load cells, structure, and foundation components are easily accessible, simplifying cleaning, inspection, and routine maintenance.

Faster Installation and Commissioning:
RCC foundation works are straightforward compared to pit construction, resulting in reduced installation time.

Lower Long Term Maintenance Cost:
Absence of pit drainage systems and sump pumps reduces operational and maintenance expenses.

Suitable for Heavy and High Traffic Applications:
Well designed RCC beams and tie beams efficiently distribute axle loads, making the system ideal for frequent and heavy vehicle movement.

Flexibility for Future Relocation:
Compared to pit type weighbridges, pitless systems can be dismantled and relocated with relatively less civil modification.
