TANK WEIGHING SYSTEM
Tank Weighing System
Precision Weighing Solutions for Tanks, Silos, Hoppers & Process Vessels
Accurate material measurement is essential for efficient production, inventory control, and process optimization. Al Falah Scales Tank Weighing Systems provide reliable and precise weighing solutions for industrial tanks, silos, hoppers, mixers, reactors, and storage vessels.
Our systems are designed to convert existing structures into accurate weighing platforms by installing load cells and specially engineered mounting assemblies between the vessel and its support structure. The solution enables real-time monitoring of material quantity, batching accuracy, and process control while minimizing material wastage and improving operational efficiency.
Built for demanding industrial environments, our tank weighing systems offer high accuracy, long-term stability, and seamless integration with automation platforms.
Key Advantages
High Measurement Accuracy
Provides precise weight measurement compared to conventional level measurement systems, especially where material density varies.
Real-Time Inventory Monitoring
Continuously monitors material quantity inside tanks and silos, helping improve stock management.
Process Automation Ready
Easily integrated with PLC, SCADA, MES, and ERP systems for automated production control.
Reduced Material Waste
Accurate dosing and batching improve production consistency and reduce overfilling or material loss.
Reliable in Harsh Environments
Designed for industrial applications including vibration, temperature variation, dust, and moisture exposure.
Low Maintenance Requirement
Robust components and proven technology ensure long service life with minimal maintenance.
Description
Precision Weighing Solutions for Tanks, Silos, Hoppers & Process Vessels

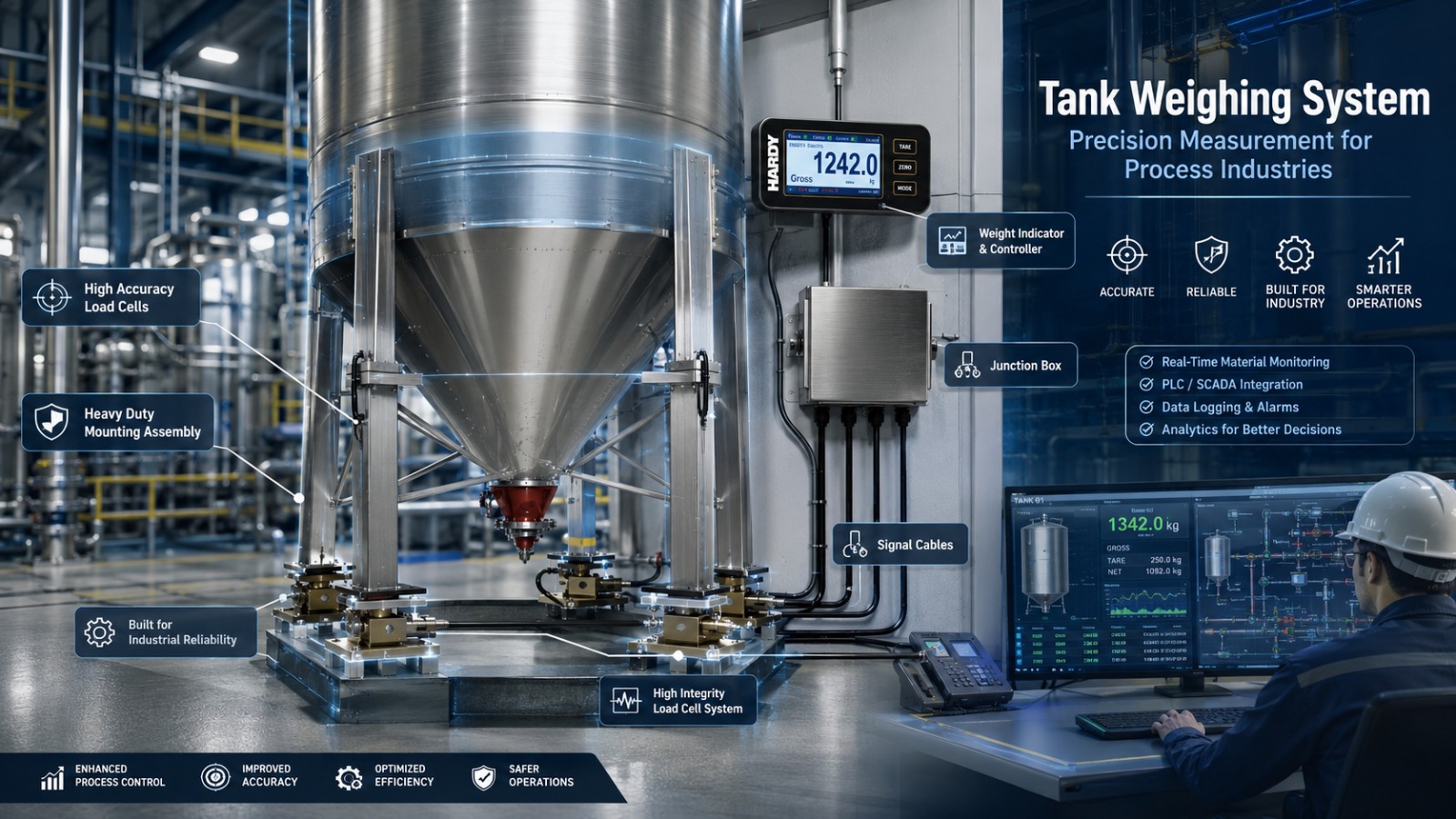

A complete tank weighing system consists of:
- High Accuracy Load Cells
We provide robust industrial-grade load cells designed for continuous operation under harsh conditions.
Features:
- Compression and tension type load cells available
- Stainless steel construction
- Hermetically sealed design
- Protection rating up to IP68/IP69K
- High resistance against dust, moisture, and industrial environments
- Available in different capacities according to vessel load requirements
- Tank Mounting Assemblies
Engineered mounting kits ensure proper load transfer from the tank structure to the load cells while maintaining stability and safety.
Mounting options include:
- Compression mounting systems
- Suspension / tension mounting systems
- Anti-lift protection arrangement
- Horizontal restraint systems
- Expansion compensation arrangement
- Suitable solutions for elevated and ground-mounted tanks
- Junction Box & Signal Management
High-quality junction boxes combine signals from multiple load cells and provide stable weight output.
Features:
- Load cell signal balancing
- Surge protection option
- Easy calibration and maintenance
- Suitable for multiple load cell configurations
- Weight Indicator & Controller
Advanced weighing controllers provide accurate weight display and process control.
Functions include:
- Gross / Net weight display
- Tare and zero functions
- Batch control
- Alarm management
- Data recording
Communication interfaces such as RS-232, RS-485, Ethernet, Modbus, and other industrial protocols.
Applications
Our tank weighing systems are widely used for:
Storage & Inventory Management
- Chemical storage tanks
- Oil and lubricant tanks
- Liquid storage vessels
- Raw material silos
Process Industries
- Mixing tanks
- Reactors
- Blending vessels
- Dosing systems
- Filling and dispensing systems
Manufacturing Industries
- Food & beverage processing
- Pharmaceutical production
- Paint and coating industries
- Cement and building materials
- Plastic and polymer industries
Automation & Batch Control
- Automatic ingredient dosing
- Recipe-based production
- Material consumption monitoring
- Production tracking
Technical Capabilities:
| Parameter | Details |
| Capacity Range | Customized according to tank size and application |
| Accuracy | Up to ±0.1% depending on system design |
| Load Cell Type | Compression / Tension / Shear Beam |
| Protection Class | IP68 / IP69K options available |
| Material | Alloy Steel / Stainless Steel |
| Communication | RS-232, RS-485, Modbus RTU, Ethernet, TCP/IP |
| Integration | PLC, SCADA, ERP & Automation Systems |
| Calibration | Certified calibration using standard weights or approved methods |
Engineering & Installation Support
Al Falah provides complete tank weighing solutions including:
✓ Site survey and application assessment
✓ Load calculation and system design
✓ Selection of suitable load cells and mounting arrangements
✓ Supply and installation
✓ Calibration and commissioning
✓ Integration with existing control systems
✓ Preventive maintenance and after-sales support
Customized Solutions for Every Application
Every industrial process has unique requirements. Our engineering team develops customized weighing solutions based on:
- Tank capacity and dimensions
- Material characteristics
- Operating environment
- Accuracy requirements
- Automation requirements
- Existing process infrastructure
Al Falah Weight Equip Tr. LLC delivers dependable tank weighing solutions that enhance accuracy, efficiency, and control across industrial operations.
