CCB9 COUNTING WEIGHING INDICATOR
CCB9 Counting Weighing Indicator
The CCB9 Counting Weighing Indicator is a high-precision digital indicator designed for weighing, piece counting and check-weighing applications. It is suitable for bench platform scales, floor scales and static weighing systems equipped with 1 to 4 load cells. Featuring a three-window backlit LCD display for weight, piece weight and total count, programmable capacity and division, piece-weight memory, tare, zero, accumulation and digital noise filtering, the CCB9 provides a practical solution for industrial and commercial weighing applications.

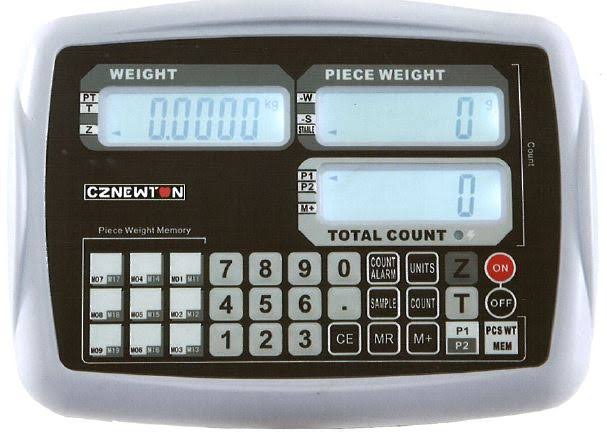

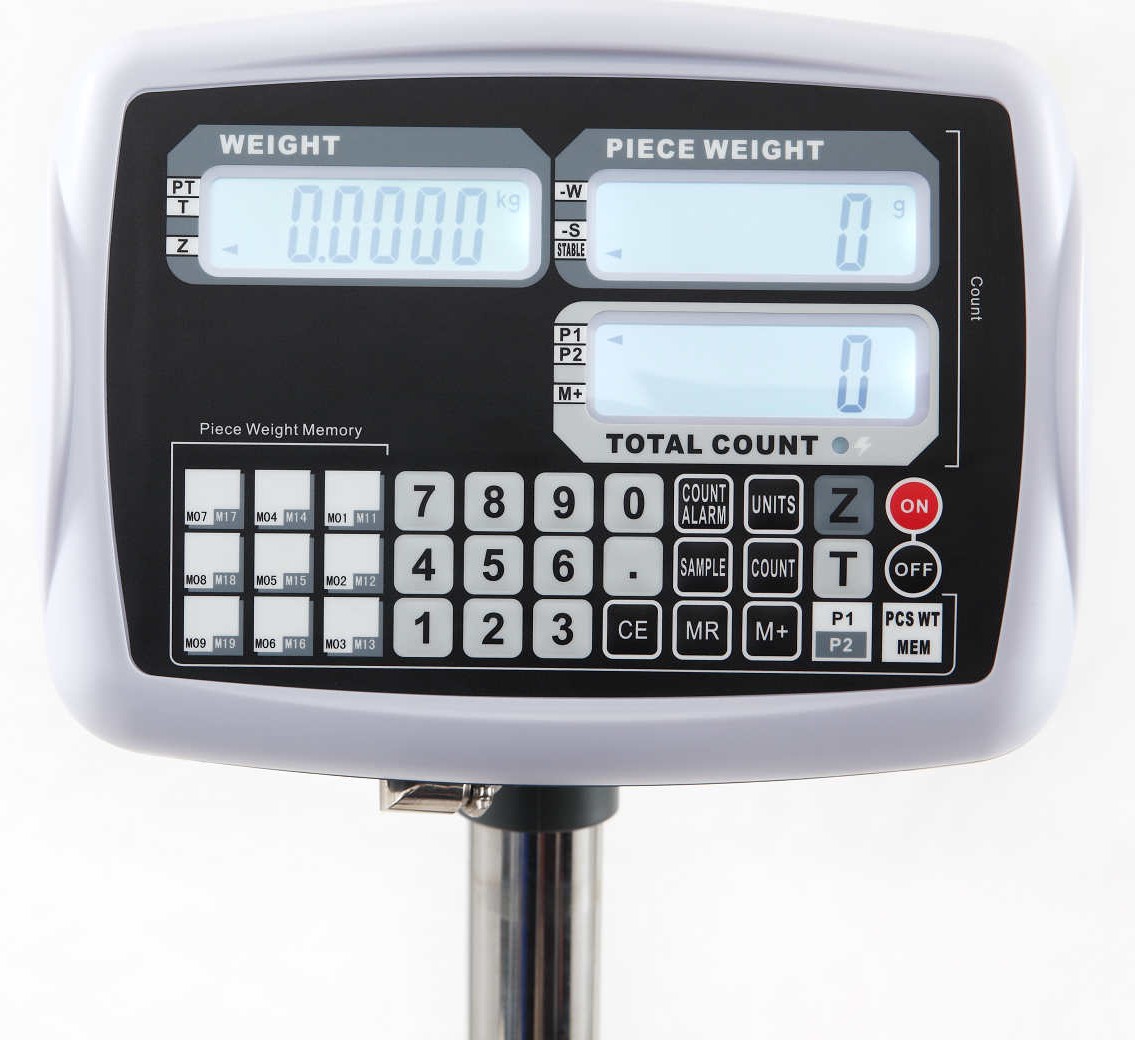

Three-Window Display
The CCB9 features an 18 mm backlit LCD display with three separate display areas for:
- Total weight
- Unit/piece weight
- Total piece count
This allows the operator to monitor the complete weighing and counting information simultaneously.
Key Features
- CCB9 digital counting and weighing indicator
- High-precision weighing and counting
- Suitable for platform scales
- Suitable for floor scales
- Suitable for static check-weighing systems
- Supports 1–4 load cells
- 18 mm backlit LCD display
- Three display windows for weight, piece weight and count
Description
CCB9 Counting Weighing Indicator
The CCB9 Counting Weighing Indicator combines accurate weight measurement with advanced parts counting and check-weighing functions, making it suitable for applications where operators need to determine both the weight and quantity of items.
Designed for use with bench platform scales, floor scales and static check-weighing systems, the CCB9 can be connected to weighing systems equipped with 1 to 4 load cells. Its high-resolution A/D conversion technology provides reliable weight measurement, while the counting functions allow users to calculate the number of individual pieces based on their average or manually entered piece weight.
Applications
Platform Weighing Scales
The CCB9 can be integrated with platform scales for weighing and counting industrial components, products, cartons, materials and other goods.
Floor Weighing Scales
Suitable for floor-scale applications where operators require both weight measurement and quantity counting.
Parts Counting
The CCB9 is particularly useful for parts-counting applications, where large quantities of identical components need to be counted based on their average piece weight.
Typical applications include:
- Nuts and bolts
- Screws and fasteners
- Electrical components
- Hardware
- Small machine parts
- Packaging components
- Industrial spare parts
- Manufacturing components
