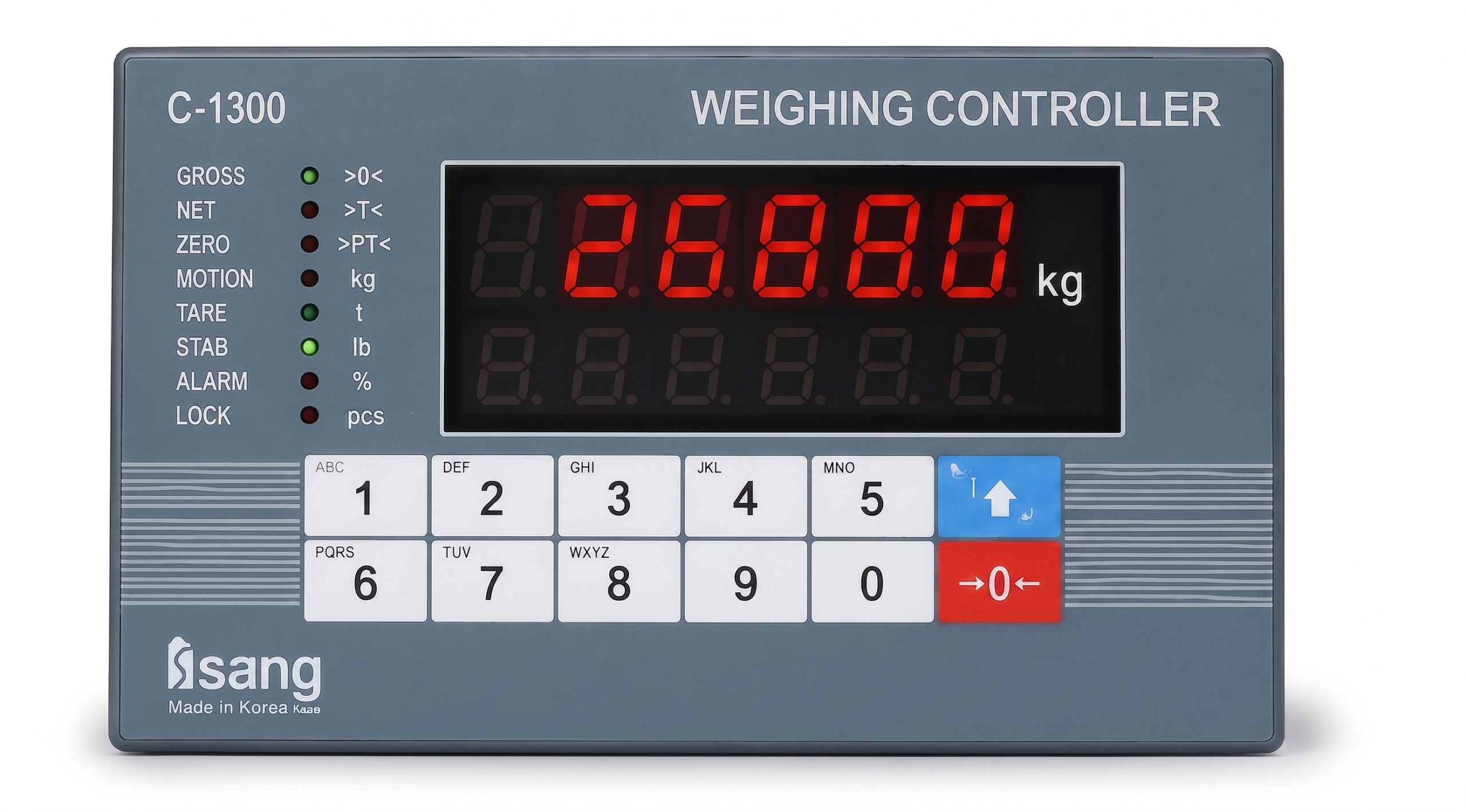

SANG C1300 PANEL MOUNTING INDICATOR
Sang C1300 Panel Mounting Weighing Indicator
The SANG C1300 Panel Mount Weighing Indicator is a compact, high-speed digital weighing controller designed for integration into weighbridges, industrial weighing systems and load-cell-based weighing applications. Featuring a 24-bit high-precision ADC, 400 Hz sampling frequency, red LED display, four programmable setpoints, analogue output and RS232/RS485 communication, the C1300 provides reliable weight indication and signal transmission for industrial automation and weighing applications. It supports up to 4 × 350 Ω load cells and can communicate with PLCs, industrial computers and remote LED displays.
Key Features
- SANG C1300 panel mount weighing indicator
- Load-cell weighing controller
- Suitable for weighbridge applications
- Suitable for industrial weighing systems
- Panel mounting design
- 24-bit high-precision A/D converter
- Digital calibration
- Red LED display
- Weight display
- Net weight function
- Four programmable setpoints
- Five relay outputs
- 0–10 V analogue output
- 4–20 mA analogue output
- RS232 communication
Description
Sang C1300 Panel Mounting Weighing Indicator
The SANG C1300 is a compact panel-mount weighing controller and digital weighing indicator designed for load-cell-based weighing systems. Its panel-mounted design allows it to be integrated directly into weighing control cabinets, machinery panels and industrial automation systems.
The C1300 combines weight indication, setpoint control, analogue signal output and serial communication in one compact unit, making it suitable for applications where weight information needs to be displayed locally and transferred to external control equipment.
For weighbridge applications, the C1300 can be incorporated into a weighing system where load-cell signals are processed by the indicator and weight information is transmitted to compatible PLC, industrial PC or remote display equipment.
Applications
Weighbridges & Truck Scales
Suitable for integration into appropriately designed weighbridge systems for vehicle and industrial weighing.
Industrial Platform Scales
Can be integrated with load-cell-based platform weighing systems.
Process Weighing
Suitable for applications requiring weight measurement and setpoint control.
Filling & Dosing
The four programmable setpoints and relay outputs can support weight-based process control.
Batching & Material Handling
Useful where weight thresholds need to control external equipment.
PLC-Based Weighing Systems
RS232, RS485 and Modbus RTU communication support integration with industrial control systems.
Remote Weight Display
The communication interfaces can be used to connect compatible remote LED displays.
