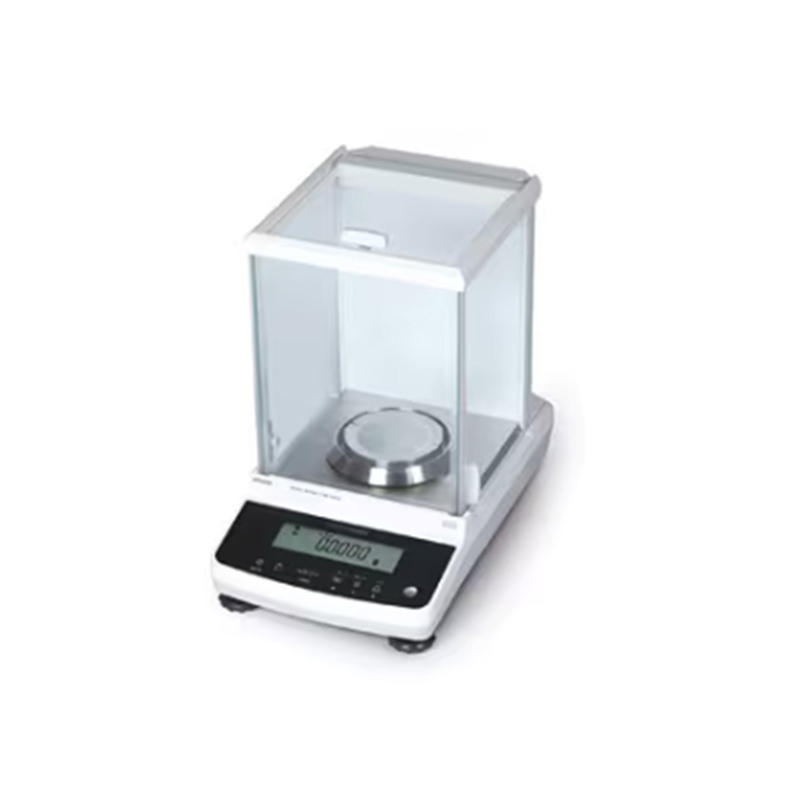

SHIMADZU AT-R Series
Basic Model with Enhanced Convenience
This model is designed to deliver improved usability and reliable performance for precise weighing tasks. Users can easily adjust responsiveness or stability settings according to their specific requirements, ensuring accurate and consistent results.
It offers seamless connectivity with computers through USB and RS232C interfaces, allowing efficient data transfer and integration. For even greater accuracy, the system can be paired with an ionizer to perform stable measurements in sensitive environments.
The balance supports a weighing capacity range of 62 g to 320 g, with a high precision readability of 0.1 mg. It features a compact pan size of approximately 91 mm in diameter, making it suitable for detailed measurements.
With overall dimensions of approximately W213 × D356 × H338 mm and a weight of around 6.0–6.2 kg, the unit is both sturdy and space-efficient. It operates using an AC adapter (input: 100–240 V AC, 50/60 Hz; output: 12 V, 1 A).

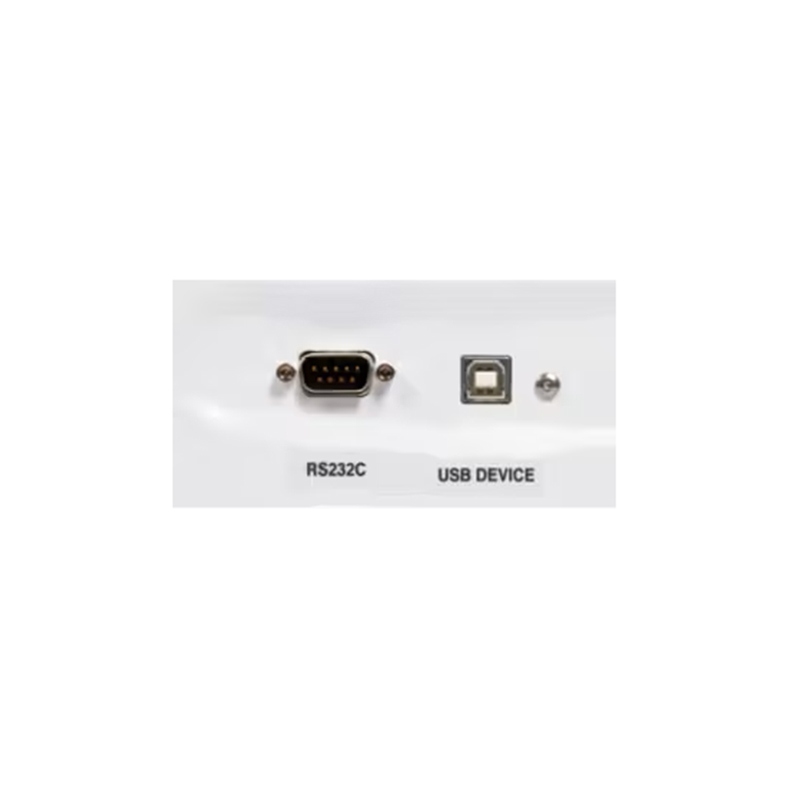

The device is equipped with RS232C (D-sub 9-pin) and USB Type-B I/O terminals for flexible connectivity. Calibration can be performed using either the built-in internal calibration system or external weights, ensuring long-term accuracy and reliability.
Description
Features of the AT-R Series
Flexible Responsiveness and Stability Settings
The AT-R Series allows users to easily adjust between responsiveness and stability depending on their weighing needs. Responsiveness is essential when measuring fixed quantities of powders and liquids, while stability becomes critical in environments affected by drafts or vibrations.

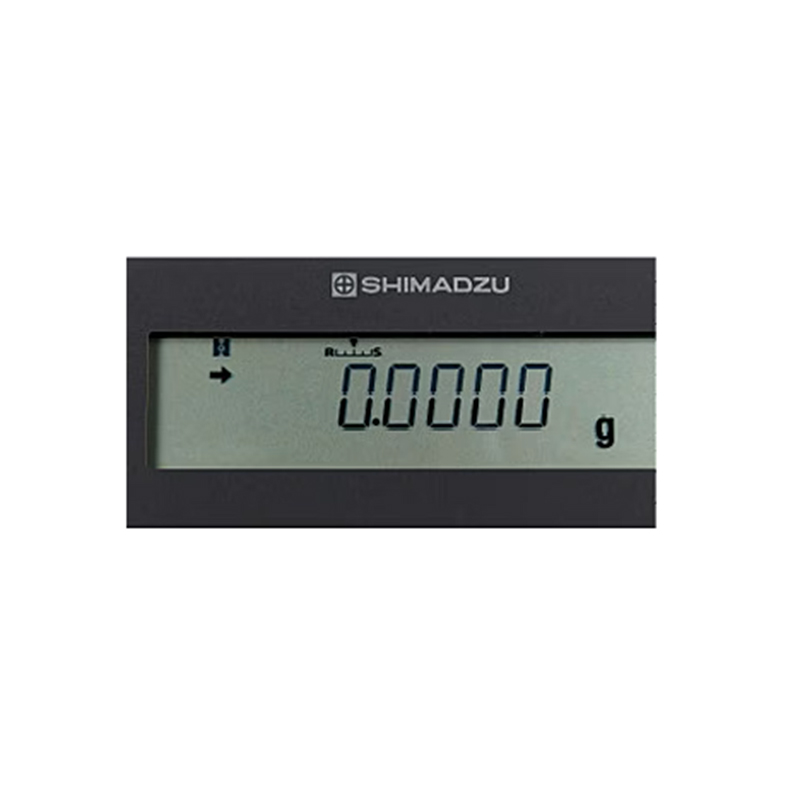

The balances feature a 5-stage indicator, making it simple to switch between response-focused (R) and stability-focused (S) modes during operation.
• Response Mode (R): Ideal for fast and efficient weighing processes
• Stability Mode (S): Perfect for environments with vibrations or disturbances
Dual Interface Connectivity (USB & RS232C)
These balances come equipped with two standard interfaces—USB and RS232C—allowing seamless connection to computers or PLC systems. Direct data transfer minimizes human error and ensures accurate recording of weight values.
The system is compatible with leading PLC models, including:
• Mitsubishi Electric Q Series
• Keyence KV-8000
• OMRON CJ2 Series
• IDEC FC6A Series
Enhanced Measurement Reliability with Ionizer
For improved accuracy, the optional STABLO™-AP ionizer effectively removes static electricity from samples and containers without generating airflow. This eliminates fluctuations and improves reproducibility in measurements.
Static removal performance can be further enhanced by using the optional AP Holder, which securely positions flasks for optimal results.
| Specification | Details |
|---|---|
| Model | ATX124R, ATX224R, ATX324R, ATX84R, ATY124R, ATY224R, ATY324R, ATY64R |
| Weighing Capacity | 320 g, 220 g, 62 g, 82 g |
| Scale Division | 0.0001 g (0.1 mg) |
| Calibration | Built-in (Internal), External Weight |
| Series | AT-R Series |
| Product Type | Analytical Balance |
| Interface | RS232, USB |
| Power Supply | AC/DC Adapter |
| Display Type | LCD |
| Units | gm |
| Warranty | 1 Year Warranty |
| Placement | On the table |
| Tray Size | Ø91 mm |
