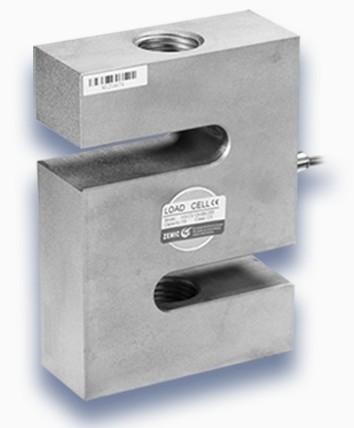

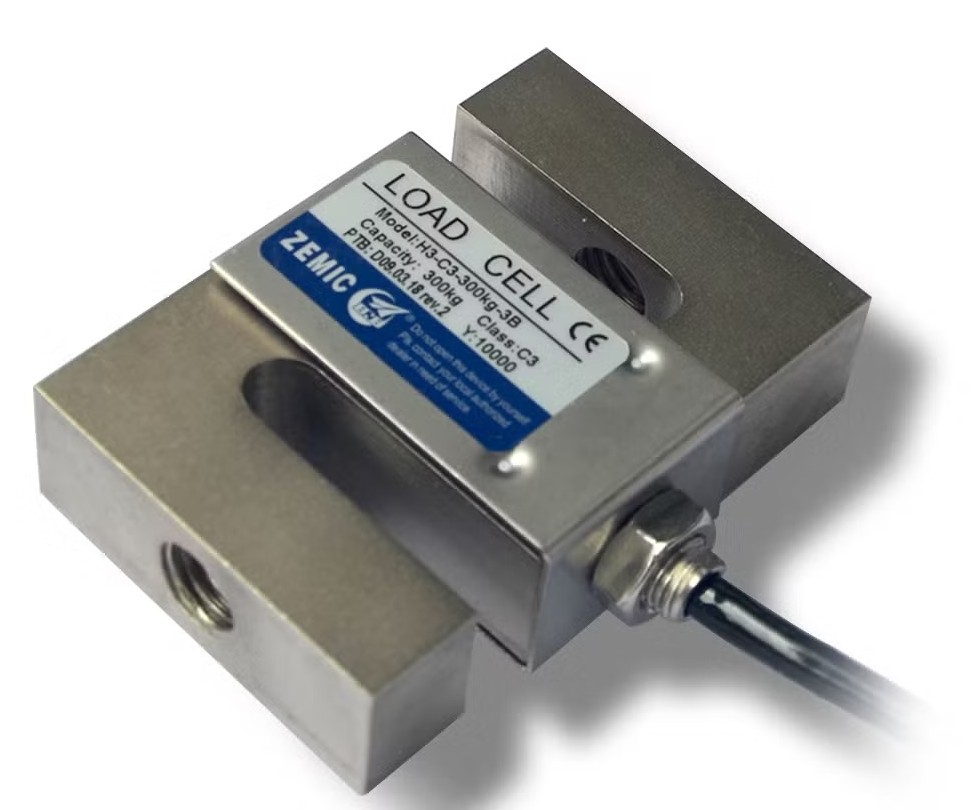

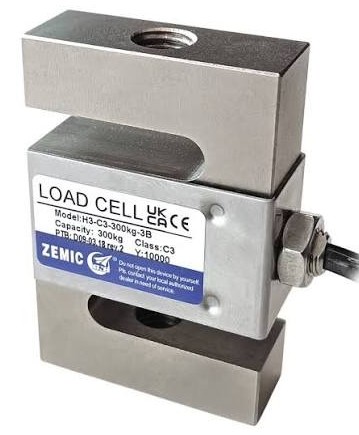

ZEMIC H3 S-TYPE LOADCELL
ZEMIC H3 S-Type Load Cell for Industrial Weighing
The ZEMIC H3 S-Type Load Cell is a reliable tension and compression load cell designed for accurate force and weight measurement in hanging scales, hopper weighing systems, and other industrial weighing applications. Constructed from nickel-plated alloy steel with IP67 ingress protection, the H3 provides dependable performance in demanding industrial environments.
Available in capacities from 25 kg to 30 tons, the ZEMIC H3 offers a wide selection for different weighing requirements, making them suitable for applications where certified weighing performance is required.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- S-type design for tension and compression applications
- 25 kg to 30 ton capacity range
- Nickel-plated alloy steel construction
- IP67 protection for industrial environments
- C3/C4 accuracy options depending on model
- Suitable for hanging and hopper weighing applications
Description
ZEMIC H3 S-Type Load Cell for Industrial Weighing
The ZEMIC H3 S-Type Load Cell is engineered for applications where loads may be measured in either tension or compression. Its S-shaped design makes it suitable for suspended and hanging weighing systems, as well as hopper and other industrial weighing equipment.
Manufactured using nickel-plated alloy steel, the H3 combines mechanical strength with IP67 protection for reliable operation in industrial environments. The load cell is designed to provide stable and repeatable weight measurement when correctly installed and integrated with a compatible weighing indicator or controller.
| Sr No | Model | Capacity | Accuracy |
| 1 | H3-C3-50kg-3B | 50 kg | C3 |
| 2 | H3-C3-100kg-3B | 100 kg | C3 |
| 3 | H3-C3-150kg-3B | 150 kg | C3 |
| 4 | H3-C3-200kg-3B | 200 kg | C3 |
| 5 | H3-C3-250kg-3B | 250 kg | C3 |
| 6 | H3-C3-500kg-3B | 500 kg | C3 |
| 7 | H3-C3-1t-3B | 1 ton | C3 |
| 8 | H3-C3-2t-3B | 2 ton | C3 |
| 9 | H3-C3-3t-3B | 3 ton | C3 |
| 10 | H3-C3-5t-3B | 5 ton | C3 |
| 11 | H3-C3-7.5t-3B | 7.5 ton | C3 |
| 12 | H3-C3-10t-3B | 10 ton | C3 |
Applications
The ZEMIC H3 S-Type Load Cell is suitable for:
- Hanging weighing scales
- Hopper weighing systems
- Tank and vessel weighing
- Suspended weighing systems
- Industrial weighing equipment
- Tension measurement systems
- Compression force measurement
- Material handling weighing applications
- Process weighing systems
- Custom weighing machinery
ZEMIC specifically identifies the H3 for hanging, hopper and other weighing devices.
