DACELL DN10W WEIGHING INDICATOR
DACELL DN10W Digital Load Cell Weighing Indicator
The DACELL DN10W Digital Indicator is a high-precision weighing and measurement indicator designed for strain-gauge load cells and other compatible sensors. It features a 5-digit 14 mm LED display, fast signal processing, automatic zero adjustment, programmable decimal point, relay comparison outputs and RS-232C communication. With a compact 96 × 48 × 128 mm panel-mount design, the DN10W is suitable for industrial weighing, force measurement, load monitoring and automation applications.
Key Features
- Brand: DACELL
- Model: DN10W
- Product Type: Digital indicator
- Primary Application: Strain-gauge load cell measurement
- Compatible Sensors: Strain-gauge sensors, load cells and other compatible transducers
- Input Signal: 0.5–3 mV/V
- Sensor Excitation: DC 5 V
- Display: 5-digit 7-segment LED
- Character Height: 14 mm
- Display Range: -19999 to +99999
- Automatic Zero: 100% F.S. auto-zero adjustment
- Relay Outputs: 4 relay comparison outputs
- Communication: RS-232C
Description

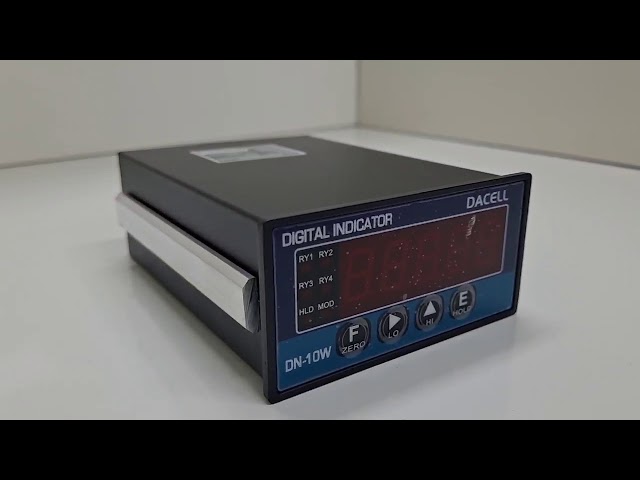

DACELL DN10W Digital Load Cell Weighing Indicator
The DACELL DN10W is a compact and versatile digital load cell indicator designed to receive and process signals from strain-gauge sensors. It is suitable for applications involving load cells, pressure transducers, LVDT and other compatible measurement sensors, making it useful for industrial weighing and force-measurement systems.
The DN10W accepts a 0.5–3 mV/V input signal and provides DC 5 V excitation for compatible strain-gauge sensors. DACELL specifies compatibility with 350 Ω and 700 Ω strain-gauge sensors, with up to four 350 Ω load cells supported under the specified excitation arrangement.
The indicator incorporates a 5-digit, 7-segment LED display with 14 mm character height, providing clear visibility of the measured value. The display range is specified as -19999 to +99999, while the decimal point can be configured as required for the application.
For industrial control applications, the DN10W provides upper- and lower-limit comparison outputs through four relays. These outputs can be used for monitoring measured values and triggering external control equipment when preset limits are reached. DACELL also specifies RS-232C communication, with optional interfaces including BCD parallel output, RS-485 and analog output, depending on configuration.
The compact panel-mount design measures approximately 96 × 48 × 128 mm, with a panel cutout around 92 × 45 mm in DACELL’s current product information. This allows the DN10W to be integrated into control panels and industrial weighing equipment without requiring significant panel space.
Applications
The DACELL DN10W digital indicator can be used in a wide range of industrial measurement and weighing applications, including:
- Load cell weighing systems
- Platform weighing equipment
- Industrial weighing machines
- Force measurement systems
- Load monitoring systems
- Hopper and tank weighing systems
- Machine load monitoring
- Industrial automation
- Process measurement
- Pressure measurement systems
- LVDT-based measurement systems
- OEM weighing equipment
- Control-panel measurement systems
The DN10W is particularly useful where a strain-gauge sensor signal needs to be displayed, monitored and integrated with external control equipment.
