DACELL DN510N WEIGHING INDICATOR
DACELL DN510N Digital Weighing Indicator
The DACELL DN510N Digital Weighing Indicator is an advanced industrial weighing and control indicator designed for packers, fillers, hoppers, checkweighers, limit scales and automated weighing systems. It provides high-speed signal processing with 200 conversions per second and 1/520,000-count A/D resolution, along with four-step control and six built-in relay outputs for precise process control. The DN510N supports up to eight 350 Ω load cells, features RS-232C and current-loop communication as standard, and provides multiple hold and weighing-control functions for industrial applications.
Key Features
- Brand: DACELL
- Model: DN510N
- Product Type: Industrial digital weighing indicator/controller
- Applications: Packer, filler, hopper, checker and limit scale
- Load Cell Excitation: 10 VDC ±5%, 320 mA
- Input Signal: 0.5–3.0 mV/V
- A/D Conversion Speed: Up to 200 times/sec
- A/D Resolution: 1/520,000 counts, 19-bit, Delta-Sigma
- Non-Linearity: 0.01% of full scale
- Load Cell Capacity: Up to 8 × 350 Ω load cells
- Control: Four-step SP1/SP2/SP3/SP4 control
- Relay Outputs: 6 built-in control relays
- Relay Functions: SP1, SP2, SP3, SP4, FINISH and NEAR ZERO
- Display: 6-digit red 7-segment display
Description
DACELL DN510N Digital Weighing Indicator
The DACELL DN510N is a high-performance industrial digital weighing indicator and controller designed for automated weighing and process-control applications. It combines accurate load-cell signal processing with programmable control functions, making it suitable for applications where weighing and process automation need to operate together.
DACELL specifically lists the DN510N for packer, filler, hopper, checker and limit-scale applications. Its four-step control architecture, designated SP1, SP2, SP3 and SP4, allows the indicator to manage multiple stages of a weighing or filling process. Six built-in control relays are provided for SP1, SP2, SP3, SP4, FINISH and NEAR ZERO functions.
The DN510N is designed for fast and precise weighing signal processing. DACELL specifies a maximum A/D conversion rate of 200 times per second and an internal 1/520,000-count, 19-bit A/D converter, helping the indicator respond quickly to changes in load-cell signals. The specified non-linearity is 0.01% of full scale.

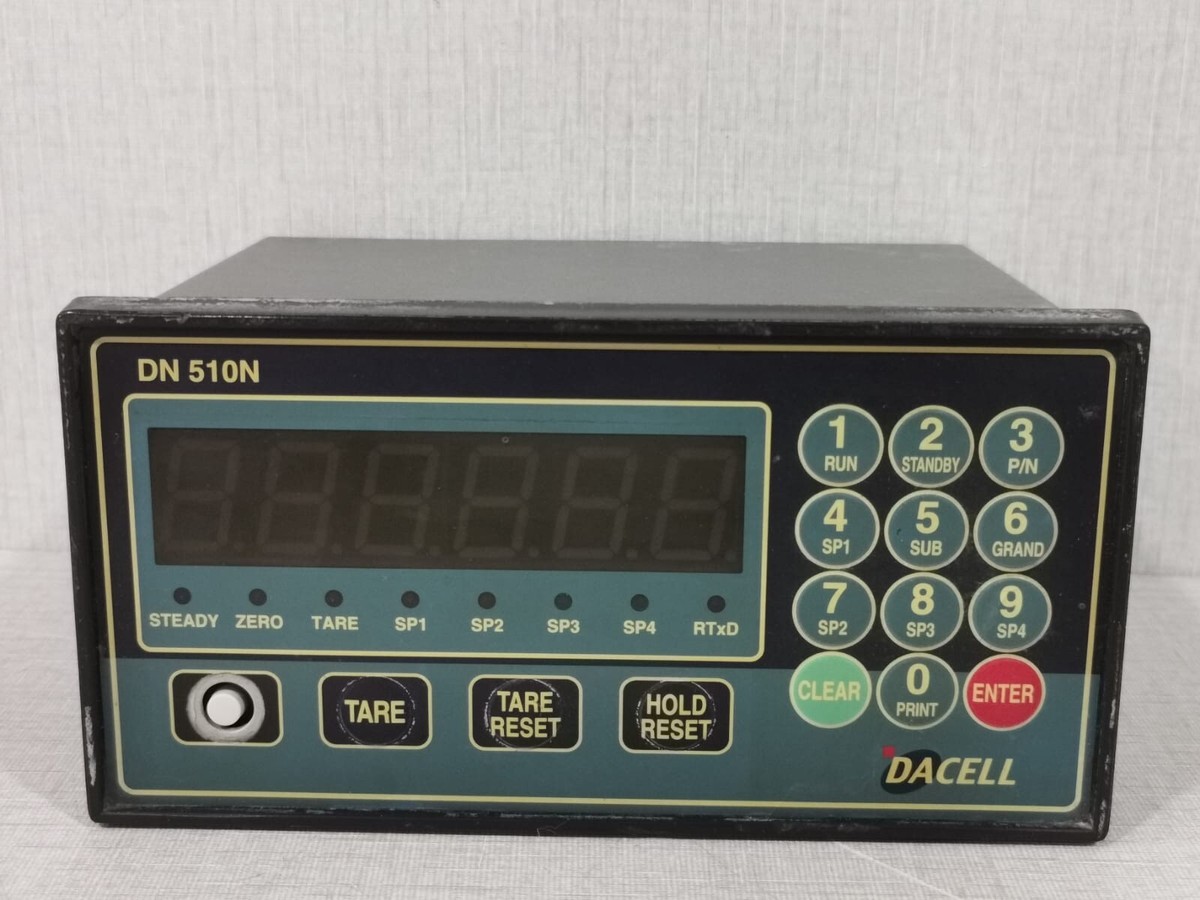

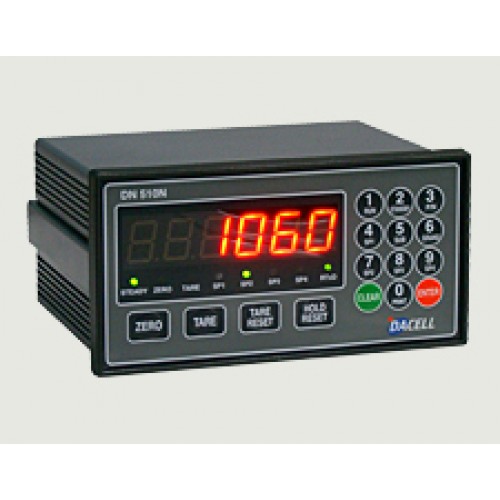

The indicator provides a 6-digit red 7-segment display with approximately 20 mm × 13 mm character dimensions, allowing the measured value to be clearly viewed in industrial environments. The display supports selectable minimum divisions and decimal-point positions to accommodate different weighing applications.

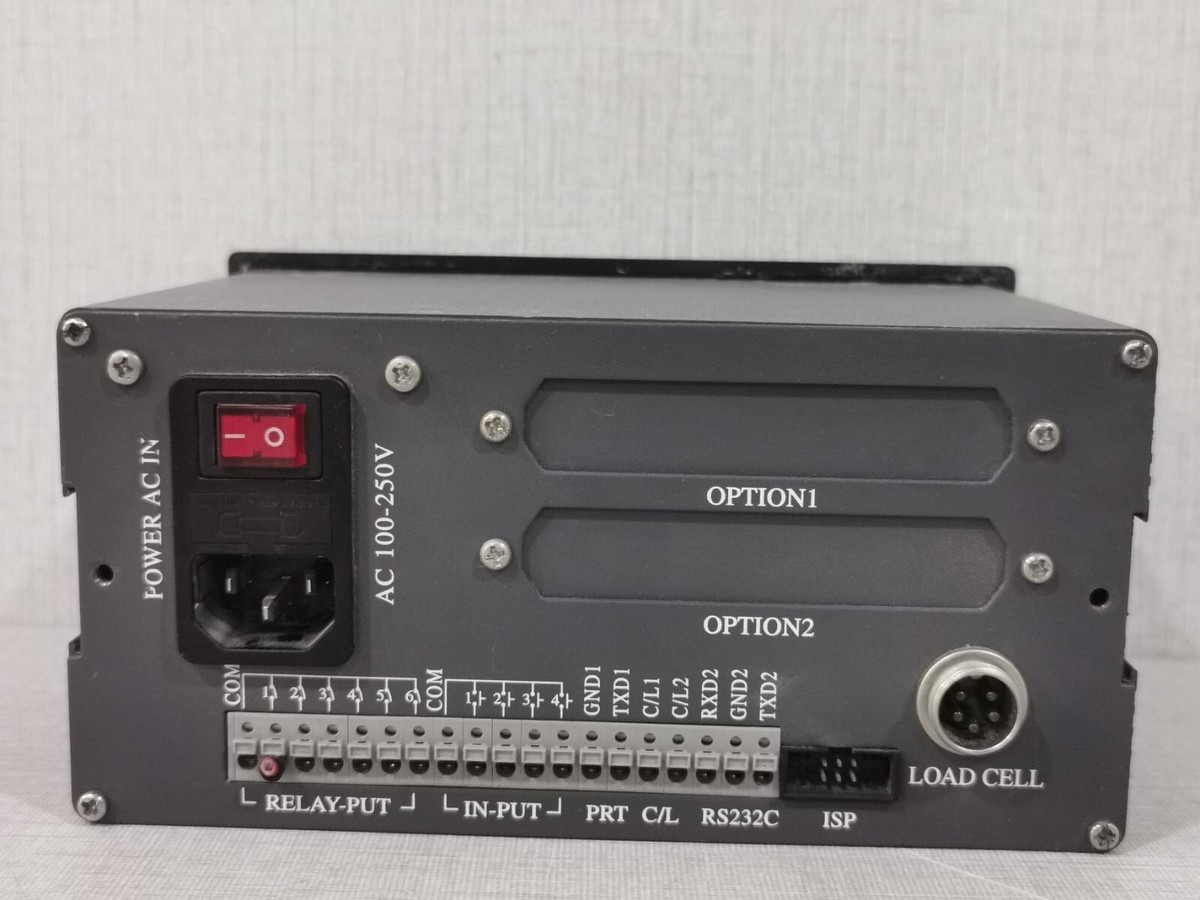

For system integration, the DN510N includes RS-232C and current-loop communication as standard. Optional interfaces and outputs can include analog voltage/current output, RS-422/RS-485 and BCD input/output, depending on the selected configuration.
Applications
The DACELL DN510N digital weighing indicator is suitable for:
- Packer machines
- Filling machines
- Hopper weighing systems
- Checkweighers
- Limit scales
- Automated weighing systems
- Batching and process weighing
- Industrial weighing equipment
- Load-cell based control systems
- Platform weighing systems
- Weight-based machine control
- Industrial automation
- Weighing and filling control
DACELL’s product information specifically identifies packer, filler, hopper, checker and limit-scale applications for the DN510N.
