UTILCELL MODEL 420 LOADCELL

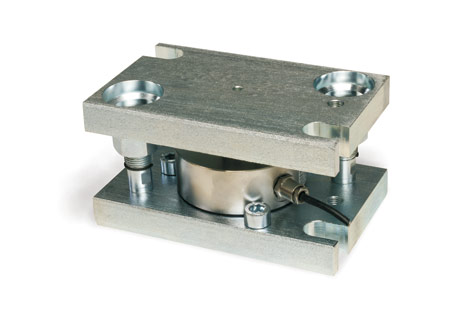

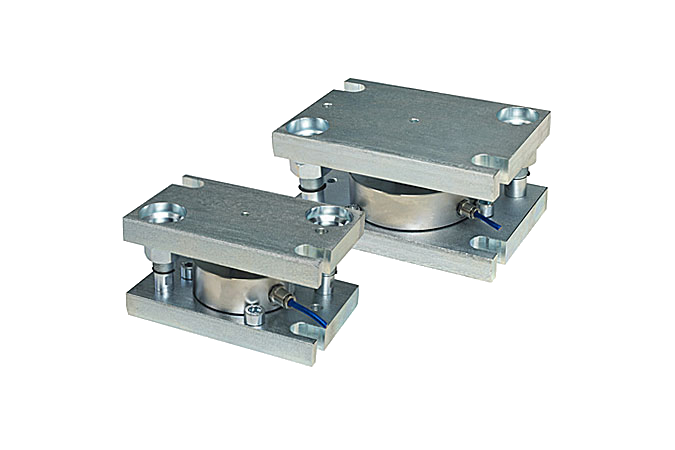

UTILCELL Model 420 Load Cell
UTILCELL Model 420 Load Cell is a compact, robust compression load cell designed for accurate weighing of tanks, silos and other industrial vessels where a low-profile weighing solution is required. Manufactured with a stainless-steel measuring element, hermetically welded construction and IP68/IP69K protection, the Model 420 is suitable for demanding and high-humidity industrial environments.
Available in capacities from 1 ton to 30 tons, the UTILCELL Model 420 provides OIML R60 Class C accuracy with 2,000 divisions. Its compact design and easy installation make it an effective solution for tank weighing, silo weighing and industrial vessel weighing systems.
Al Falah Weight Equip is a supplier of the Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Low-Profile Weighing Solution
One of the primary advantages of the UTILCELL 420 is its suitability for low-profile weighing systems. The compact load cell can be installed beneath tanks, silos and vessels where conventional higher-profile load-cell arrangements may be unsuitable.
Description
UTILCELL Model 420 Load Cell
The UTILCELL Model 420 is a stainless-steel compression load cell developed for industrial weighing applications requiring a compact and reliable load-measurement solution. It is particularly suited to tanks and silos with low-profile installation requirements, where installation height and available space are important considerations.
The Model 420 combines a compact mechanical design with stainless-steel construction and hermetically sealed electronics. Its IP68 and IP69K protection makes it suitable for installations exposed to moisture, dust and demanding cleaning or environmental conditions.
Stainless-Steel Construction
The measuring element is manufactured from stainless steel and the load cell is fully welded and hermetically sealed. This construction provides enhanced protection against moisture and environmental contamination, making the Model 420 suitable for demanding industrial installations.
| Sr No | Model | Capacity | Accuracy |
| 1 | 420 – 5 ton | 5 ton | C |
| 2 | 420 – 10 ton | 10 ton | C |
| 3 | 420 – 20 ton | 20 ton | C |
| 4 | 420 – 30 ton | 30 ton | C |
Applications
The UTILCELL Model 420 Load Cell is suitable for:
- Tank weighing systems
- Silo weighing systems
- Hopper and vessel weighing
- Low-profile weighing systems
- Industrial process weighing
- Material storage weighing
- Batching and dosing systems
- Industrial weighing equipment
- High-humidity weighing environments
- ATEX-rated weighing applications with the appropriate version.
