ZEMIC BM8H SHEAR BEAM LOADCELL

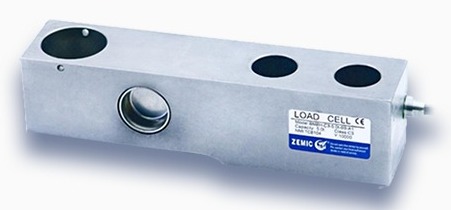

ZEMIC BM8H Shear Beam Load Cell
The ZEMIC BM8H Shear Beam Load Cell is a high-accuracy stainless-steel, hermetically sealed IP68 load cell designed for reliable weighing in demanding industrial environments. Available in capacities from 500 kg to 5 tons, the BM8H features OIML R60 C3 accuracy, 2.0 mV/V output sensitivity and robust overload protection. It is suitable for platform scales, floor and pallet scales, hopper scales, tank weighing systems and other industrial weighing applications.
Al Falah Weight Equip is a supplier of the Shear Beam Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC BM8H shear beam load cell
- Stainless-steel construction
- IP68 ingress protection
- Hermetically sealed
- OIML R60 C3 approved
- 500 kg to 5 ton capacity range
- 2.0 mV/V output sensitivity
- 1000 Ω input resistance
- 1000 Ω output resistance
- 150% safe overload
- 300% ultimate overload
- 5–12 V recommended excitation
Description
ZEMIC BM8H Shear Beam Load Cell for Industrial Weighing
The ZEMIC BM8H is a robust stainless-steel shear beam load cell developed for accurate and dependable load measurement in industrial and commercial weighing systems.
The BM8H combines a stainless-steel sensing element with hermetic sealing and IP68 ingress protection, providing a durable solution for weighing applications exposed to demanding environmental conditions.
ZEMIC specifically lists the BM8H for hopper, platform and pallet scales, while its shear beam design makes it suitable for a range of industrial weighing systems.
| Sr No | Model | Capacity | Accuracy |
| 1 | BM8H-C3-500kg-3B | 500 kg | C3 |
| 2 | BM8H-C3-1t-3B | 1 ton | C3 |
| 3 | BM8H-C3-2t-5B | 2 ton | C3 |
| 4 | BM8H-C3-5t-5B | 5 ton | C3 |
Applications

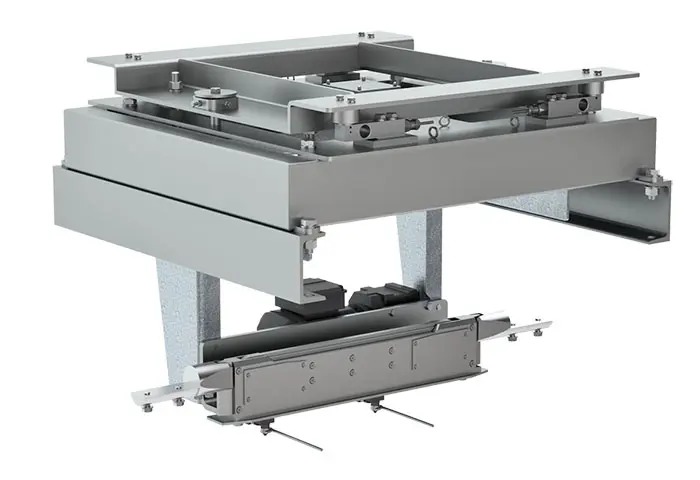

Platform Scales
For industrial and commercial platform weighing systems using multiple load cells.
Pallet Scales
Suitable for pallet weighing systems where accurate load measurement is required.
Hopper Scales
For bulk-material, process and batching weighing applications.
Tank & Vessel Weighing
For appropriately engineered industrial tank and vessel weighing systems.
Industrial Weighing
For electronic weighing equipment operating in demanding environments.
Process Weighing
Suitable for industrial process and material weighing applications.
