ZEMIC BM8D SHEAR BEAM LOADCELL

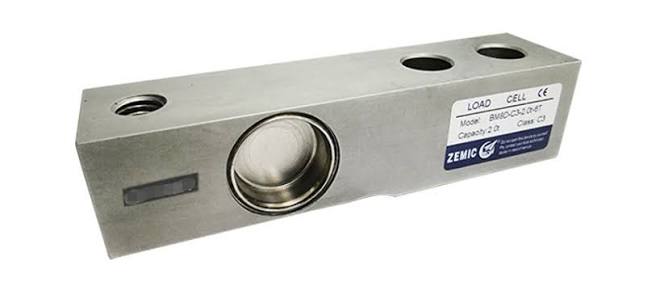

ZEMIC BM8D Shear Beam Load Cell
The Shear Beam Load cell is a heavy-duty industrial floor scale load cell, also suitable for use in all many platform scales, weighing conveyors, silo tanks, and hoppers weighing systems.
The ZEMIC BM8D is a robust single-ended shear beam load cell designed to provide accurate weight measurement in industrial and commercial weighing systems. Its stainless-steel construction and hermetically welded enclosure provide a high level of environmental protection, making the BM8D suitable for demanding weighing installations.
ZEMIC specifies the BM8D for platform scales, container and tank scales and other weighing applications, while the product range is available in multiple capacities and accuracy classes to suit different scale designs.
Al Falah Weight Equip is a supplier of the Shear Beam Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC BM8D load cell
- Stainless-steel construction
- Shear beam design for applicable capacities
- 150 kg to 10 tons capacity range
- Hermetically sealed construction
- IP68 protection
- OIML-approved versions
- C3 accuracy options depending on model
- 350 Ω input impedance
- 350 Ω output impedance
- 2.0 mV/V and 3.0 mV/V output options
- 5–12 V recommended excitation
Description
ZEMIC BM8D Shear Beam Load Cell for Industrial Weighing
The ZEMIC BM8D is a robust single-ended shear beam load cell designed to provide accurate weight measurement in industrial and commercial weighing systems. Its stainless-steel construction and hermetically welded enclosure provide a high level of environmental protection, making the BM8D suitable for demanding weighing installations.
ZEMIC specifies the BM8D for platform scales, container and tank scales and other weighing applications, while the product range is available in multiple capacities and accuracy classes to suit different scale designs.
| Sr No | Model | Capacity | Accuracy |
| 1 | BM8D-C3-150kg-6B | 150 kg | C3 |
| 2 | BM8D-C3-300kg-6B | 300 kg | C3 |
| 3 | BM8D-C3-500kg-6B | 500 kg | C3 |
| 4 | BM8D-C3-1t-6B | 1 ton | C3 |
| 5 | BM8D-C3-2t-6B | 2 ton | C3 |
| 6 | BM8D-C3-3t-6B | 3 ton | C3 |
| 7 | BM8D-C3-5t-6B | 5 ton | C3 |
| 8 | H8C-C3-10t-6B | 10 ton | C3 |
Applications
Platform Scales
For industrial and commercial electronic platform weighing systems.
Floor Scales
Suitable for heavy-duty floor weighing systems using multiple load cells.
Tank Scales
For weighing tanks, vessels and industrial containers.
Hopper Scales
Suitable for material and process weighing applications.
Container Scales
For industrial container weighing systems.
Vehicle Weighing
Can be integrated into appropriately designed vehicle weighing systems and test lines.
Industrial Weighing Equipment
Suitable for a variety of electronic weighing systems requiring robust stainless-steel load cells.
