UTILCELL Model 740 High Capacity Compression Load Cell

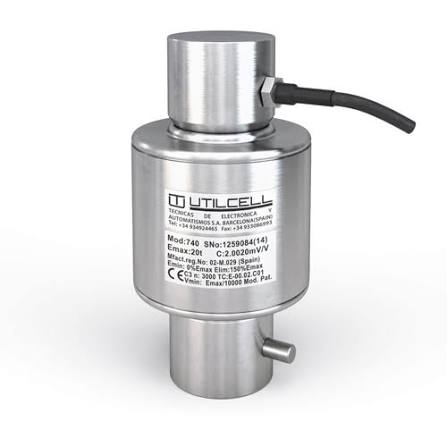

UTILCELL Model 740 Load Cell is a high-capacity compression load cell with a self-centering column, designed primarily for heavy-duty weighing applications such as truck weighbridges and vehicle scales. Manufactured from stainless steel with hermetically welded construction, the Model 740 provides IP68 and IP69K protection for reliable performance in demanding outdoor and industrial environments.

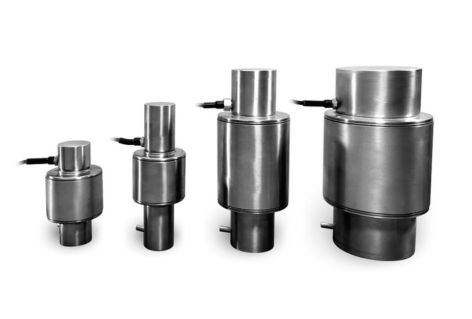

Available in capacities from 15 tons to 60 tons, with additional 100 to 600 ton versions for very high-capacity weighing systems, the UTILCELL Model 740 offers OIML R60 Class C accuracy, optimized pre-corner adjustment for multi-load-cell systems, and integrated lightning protection. ATEX and high-temperature versions are also available for specialized applications.
Al Falah Weight Equip is a supplier of the Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Stainless-Steel Construction
The Model 740 is constructed from stainless steel and is hermetically welded. This provides a robust mechanical structure and helps protect the internal strain-gauge measuring element from environmental contamination.
The standard 740 has IP68 and IP69K protection, making it well suited to outdoor truck-scale installations and industrial environments requiring a high level of ingress protection.
Description
UTILCELL Model 740 Compression Load Cell for Weighbridges and Heavy-Duty Weighing
The UTILCELL Model 740 is a heavy-duty compression load cell with a self-centering column, specifically developed for high-capacity weighing systems. Its robust construction and high load capacity make it particularly suitable for truck weighbridges, vehicle scales and other industrial weighing installations where long-term reliability and accurate load measurement are essential.
The load cell is manufactured from stainless steel and uses a hermetically welded construction, providing IP68 and IP69K protection. This makes the Model 740 suitable for demanding outdoor environments, including applications exposed to moisture, dust and high-pressure cleaning.
| Sr No | Model | Capacity | Accuracy |
| 1 | 740 – 30 ton | 30 ton | C |
| 2 | 740 – 40 ton | 40 ton | C |
| 3 | 740 – 50 ton | 50 ton | C |
Applications
The UTILCELL Model 740 Load Cell is suitable for:
- Truck weighbridges
- Vehicle weighing scales
- Heavy-duty platform scales
- High-capacity industrial weighing systems
- Road weighbridges
- Axle and vehicle weighing systems
- Heavy industrial weighing
- Multi-load-cell weighing systems
- High-capacity material weighing
- Outdoor weighing installations
UTILCELL specifically identifies high-capacity weighing systems and truck scales as the principal applications for Model 740.
