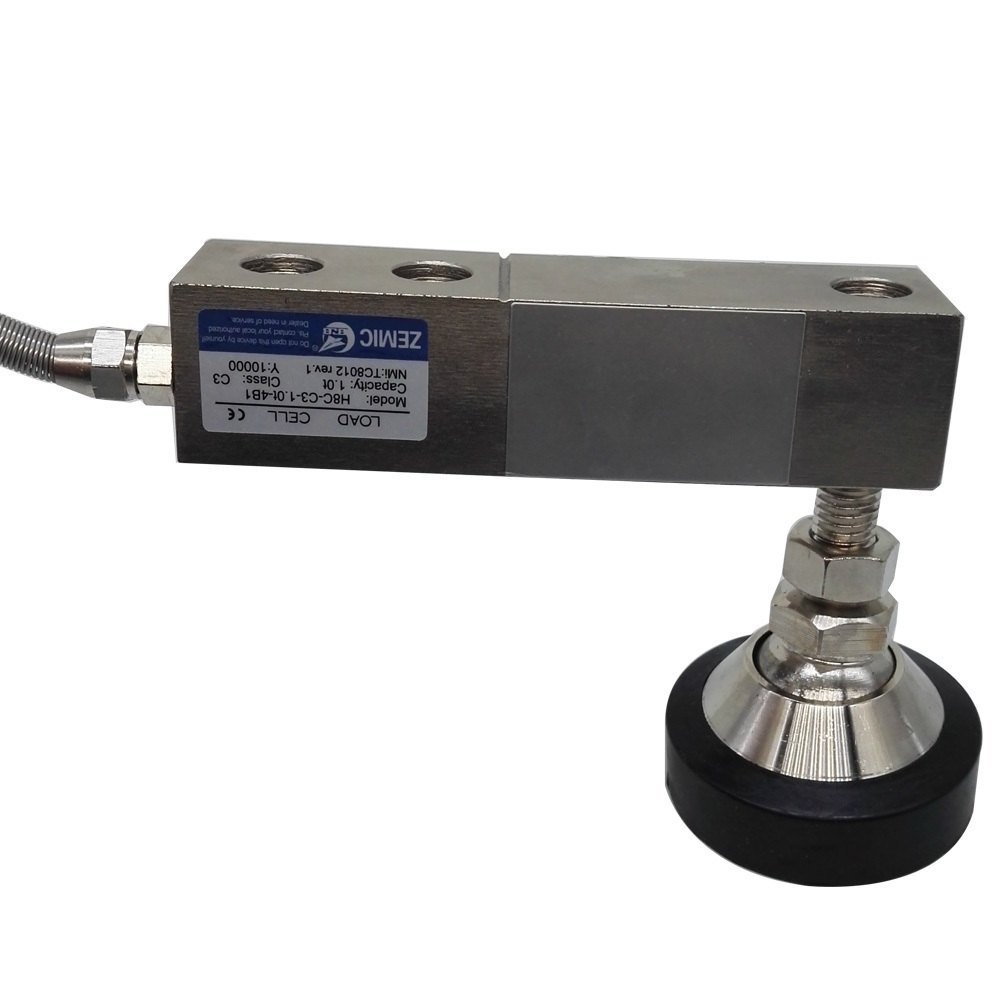

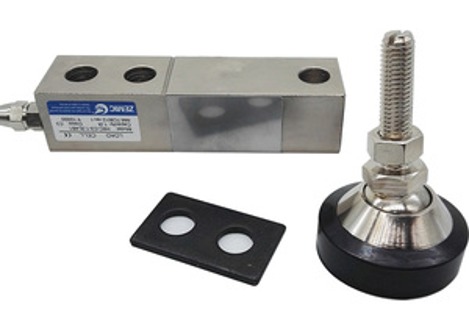

ZEMIC H8C Shear Beam Load Cell
The Shear Beam Load cell is a heavy-duty industrial floor scale load cell, also suitable for use in all many platform scales, weighing conveyors, silo tanks, and hoppers weighing systems.
The ZEMIC H8C Shear Beam Load Cell is a high-accuracy, high-reliability load cell designed for platform scales, floor scales, container and tank weighing systems, and other industrial weighing applications. Manufactured from nickel-plated alloy steel and featuring IP67 ingress protection, the H8C is available in capacities from 100 kg to 10 tons and in OIML R60 C3, C4 and C5 accuracy classes, depending on capacity and configuration. It provides a 3.0 mV/V output sensitivity, robust overload protection and optional mounting configurations for flexible scale installation.
Capacity from 100 kg to 10 tons. Aluminum, Alloy steel Nickel-plated, or Stainless steel structure.
Al Falah Weight Equip is a supplier of the Shear Beam Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC H8C shear beam load cell
- High accuracy and reliability
- Nickel-plated alloy steel construction
- IP67 protection
- OIML R60 C3, C4 and C5 options
- Capacities from 100 kg to 10 tons
- 3.0 mV/V nominal output sensitivity
- 350 Ω input and output resistance
- Safe overload up to 150% FS
- Ultimate overload up to 300% FS
- 5–12 V recommended excitation
Description
ZEMIC H8C Shear Beam Load Cell for Industrial Weighing
The ZEMIC H8C is a robust shear beam load cell developed for accurate and reliable measurement of weight in industrial and commercial weighing systems. Its proven shear beam construction makes it suitable for integrating into multi-load-cell weighing platforms and structural weighing applications.
According to the ZEMIC, the H8C is suitable for platform weighing, container and tank scales, bed weighing and similar applications. The load cell is available in multiple capacities and accuracy classes, allowing the appropriate model to be selected according to the scale design and weighing requirements.
| Sr No | Model | Capacity | Accuracy |
| 1 | H8C-C3-500kg | 500 kg | C3 |
| 2 | H8C-C3-1.0t | 1 ton | C3 |
| 3 | H8C-C3-2.0t | 2 ton | C3 |
| 4 | H8C-C3-3.0t | 3 ton | C3 |
| 5 | H8C-C3-5.0t | 5 ton | C3 |
| 6 | H8C-C3-10.0t | 10 ton | C3 |
Applications
Platform Scales
The H8C is suitable for multi-load-cell platform weighing systems.
Floor Scales
Its robust alloy-steel construction and IP67 protection make it suitable for appropriately designed industrial floor scales.
Container Scales
The H8C is specified for container weighing applications.
Tank Scales
The load cell can be used in appropriately engineered tank weighing systems.
Industrial Weighing
Suitable for industrial weighing equipment requiring reliable load measurement.
