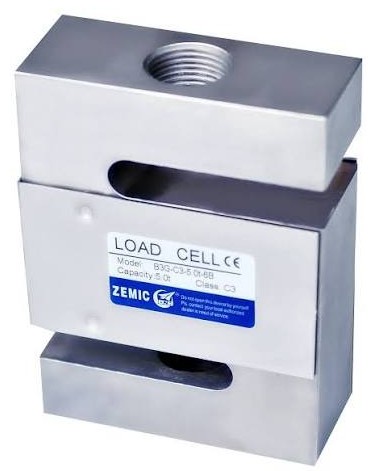

ZEMIC B3G S-Type Load Cell
The ZEMIC B3G S-Type Load Cell is a robust stainless-steel IP67 load cell designed for accurate force and weight measurement in both tension and compression applications. Available in capacities from 50 kg to 10 tons, the B3G offers OIML-approved C3 accuracy and is suitable for hanging scales, hopper scales, suspended weighing systems and other industrial weighing applications. Its S-shaped design allows the load cell to measure both pulling and pushing forces, making it a versatile solution for industrial weighing and force measurement systems.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC B3G S-Type Load Cell
- Stainless-steel construction
- IP67 protection
- S-shaped load-cell design
- Tension and compression measurement
- 50 kg to 10 ton capacity range
- Suitable for hanging scales
- Suitable for suspended weighing
- Suitable for hopper scales
- Suitable for industrial weighing
- 2 mV/V and 3 mV/V output options within the S-type range
- Threaded mounting connections
Description
ZEMIC B3G S-Type Load Cell for Tension & Compression Weighing
The ZEMIC B3G is a high-quality stainless-steel S-type load cell designed for weighing and force-measurement applications where loads can be applied in either tension or compression.
The S-shaped construction allows the B3G to measure both pulling and pushing forces. This makes it particularly suitable for hanging weighing systems, hopper scales and other suspended or tension/compression weighing applications.
ZEMIC identifies the B3G as an IP67 stainless-steel S-type load cell with capacities ranging from 50 kg to 10 tons.
| Sr No | Model | Capacity | Accuracy |
| 1 | B3G-C3-50kg-6B | 50 kg | C3 |
| 2 | B3G-C3-100kg-6B | 100 kg | C3 |
| 3 | B3G-C3-250kg-6B | 250 kg | C3 |
| 4 | B3G-C3-500kg-6B | 500 kg | C3 |
| 5 | B3G-C3-1t-6B | 1 ton | C3 |
| 6 | B3G-C3-2.5t-6B | 2.5 ton | C3 |
| 7 | B3G-C3-5t-6B | 5 ton | C3 |
| 8 | B3G-C3-7.5t-6B | 7.5 ton | C3 |
| 9 | B3G-C3-10t-6B | 10 ton | C3 |
Applications
Hanging Scales
For suspended weighing systems where the load is applied in tension.
Hopper Scales
For weighing hoppers, bulk materials and process materials.
Suspended Weighing
For suspended containers, vessels and other weighing structures.
Big-Bag Weighing
Suitable for appropriately designed suspended weighing systems for bulk bags.
Industrial Weighing
For industrial weighing systems requiring tension/compression measurement.
Force Measurement
For applications requiring measurement of pulling or pushing forces.
