UTILCELL MODEL 620 S TYPE LOADCELL

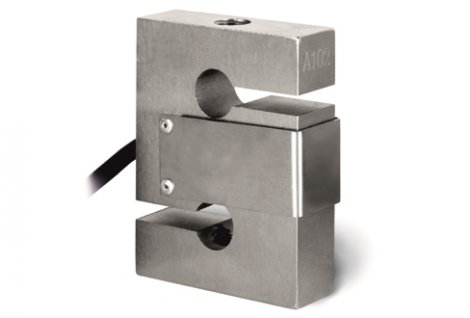

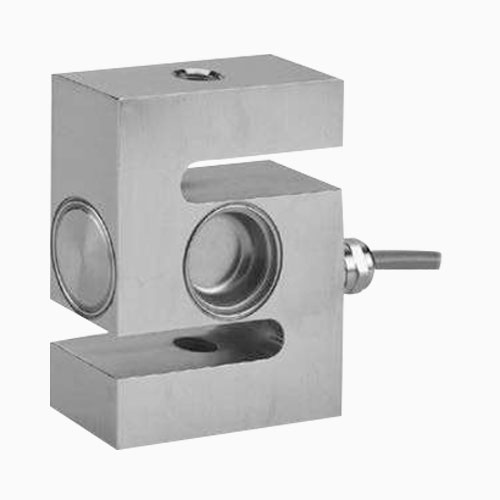

UTILCELL Model 620 Tension & Compression Load Cell
UTILCELL Model 620 Load Cell is a robust tension and compression load cell designed for accurate and reliable force measurement in industrial weighing applications. Manufactured from nickel-plated alloy steel and protected to IP67, the Model 620 is suitable for indoor and outdoor installations where resistance to moisture and corrosion is required.

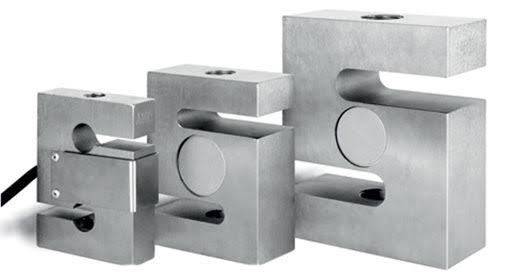

Available in capacities from 50 kg to 6,000 kg, the UTILCELL 620 features OIML R60 Class C accuracy with 3000 divisions and a nominal sensitivity of 2 mV/V. Its versatile tension/compression design makes it suitable for tanks, hoppers, suspended conveyor belt scales, asphalt and concrete plants, crane scales, and force-testing equipment.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Tension and Compression Measurement
Unlike load cells designed exclusively for compression applications, the UTILCELL 620 can measure both tension and compression. This makes it particularly useful for suspended weighing, hanging tanks and hoppers, conveyor weighing systems, crane scales and force-testing applications.
UTILCELL specifically lists applications including suspended tanks and hoppers, suspended conveyor belt scales, asphalt and concrete plants, force measurement in testing equipment and crane scales
Description
UTILCELL Model 620 Tension & Compression Load Cell
The UTILCELL Model 620 is a high-quality industrial load cell developed for applications requiring reliable measurement of both tension and compression forces. Its versatile mechanical design allows it to be incorporated into suspended weighing systems, force-measurement equipment and various industrial weighing installations.
The load cell uses an alloy-steel measuring element with nickel-plated corrosion protection, providing durability in demanding industrial environments. With IP67 ingress protection, the Model 620 is protected against dust and temporary water exposure, making it suitable for a wide range of indoor and outdoor weighing applications.
| Sr No | Model | Capacity | Accuracy |
| 1 | 620 – 100 kg | 100 kg | C |
| 2 | 620 – 200 kg | 200 kg | C |
| 3 | 620 – 500 kg | 500 kg | C |
| 4 | 620 – 1000 kg | 1000 kg | C |
| 5 | 620 – 2000 kg | 2000 kg | C |
| 6 | 620 – 3000 kg | 3000 kg | C |
| 7 | 620 – 5000 kg | 5000 kg | C |
| 8 | 620 – 6000 kg | 6000 kg | C |
Applications
The UTILCELL Model 620 Load Cell is suitable for:
- Tank weighing systems
- Hopper weighing systems
- Suspended weighing
- Conveyor belt scales
- Crane scales
- Asphalt plants
- Concrete batching plants
- Force measurement
- Testing machines
- Industrial weighing systems
- Tension and compression measurement
- Weighing equipment and machinery
