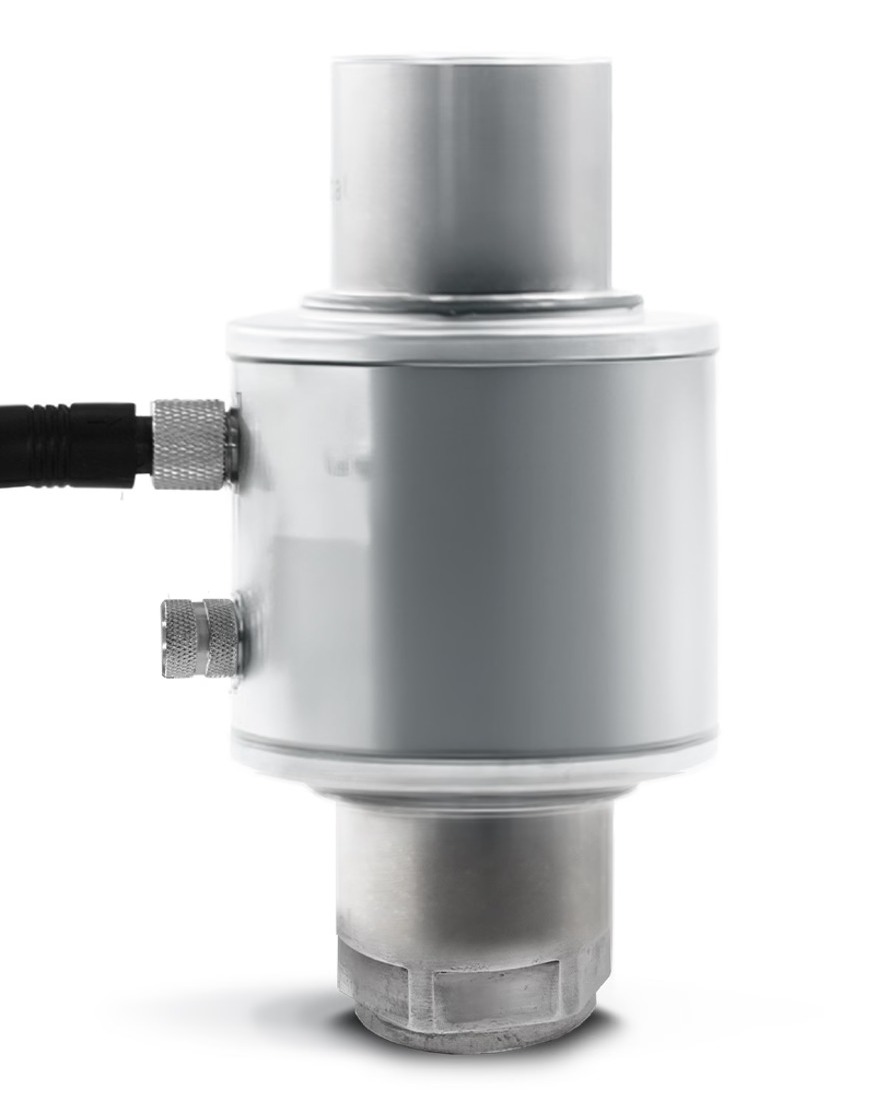

GIROPES G8R ACP ANALOGUE COMPRESSION LOADCELL
GIROPES G8RD Digital Stainless Steel Compression Load Cell
The GIROPES G8R-ACP Analogue Load Cell is a high-capacity compression load cell designed for weighbridges, truck scales and demanding industrial weighing applications. Manufactured from stainless steel and hermetically sealed by laser welding, the G8R-ACP provides IP69K protection, OIML R60 Class C4 accuracy and capacities from 18 tons to 50 tons. Its flat-face design provides enhanced stability and helps prevent load-cell movement, making it suitable for heavy-duty weighbridge installations and high-capacity hopper and silo weighing systems.
Al Falah Weight Equip is a supplier of the Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- Brand: GIROPES
- Model: G8R-ACP
- Type: Analogue compression load cell
- Design: Flat-face / compression type
- Capacity Range: 18 t to 50 t
- Available Capacities: 18, 20, 25, 30, 35, 40 and 50 t
- Accuracy Class: OIML R60 Class C4
- Verification Intervals: 4,000 divisions
- Material: Stainless steel
- Protection: IP69K
- Sealing: Hermetically sealed with laser welding
- Rated Output: 2 mV/V ±1%
Description
GIROPES G8R ACP Analogue Compression Load Cell for Weighbridges and Heavy-Duty Weighing
The GIROPES G8R-ACP is a robust, high-capacity analogue compression load cell engineered for accurate and reliable weighing in heavy-duty industrial environments. It is specifically designed for applications such as truck weighbridges, vehicle scales, high-capacity weighing platforms, silos and hoppers where substantial loads and demanding environmental conditions are involved.
The G8R-ACP features a fully stainless-steel construction with hermetic sealing achieved through laser welding. Its IP69K protection rating provides a high level of protection against dust and high-pressure, high-temperature water cleaning, making it particularly suitable for industrial environments where frequent washdown and exposure to moisture can occur. Giropes notes that the G8R family is suitable for demanding cleaning environments, including applications exposed to high-pressure water jets.
Available capacities range from 18,000 kg to 50,000 kg, allowing the G8R-ACP to be configured for different high-capacity weighing requirements. All listed capacities are specified with OIML R60 Class C4 accuracy and a maximum number of 4,000 verification scale intervals. The series includes 18 t, 20 t, 25 t, 30 t, 35 t, 40 t and 50 t versions.
The G8R-ACP’s flat-face construction is designed to improve mechanical stability and reduce the possibility of load-cell movement during operation. This is particularly beneficial in weighbridge applications where stable load transmission is essential for consistent weighing performance.
| Sr No | Model | Capacity | Accuracy |
| 1 | G8R 30ACP | 30 ton | C4 |
| 2 | G8R 40ACP | 40 ton | C4 |
| 3 | G8R 50ACP | 50 ton | C4 |
Applications
The GIROPES G8R ACP analogue load cell is suitable for:
- Truck weighbridges
- Vehicle weighing scales
- High-capacity weighbridges
- Industrial platform scales
- Heavy-duty weighing systems
- High-capacity silos
- Hopper weighing systems
- Large tank weighing systems
- Industrial process weighing
- Heavy industrial weighing installations
- Vehicle and axle weighing systems
- Weighbridges
