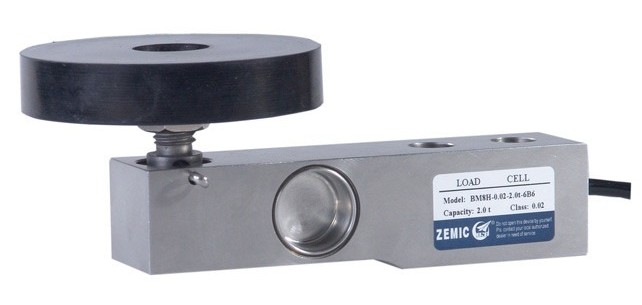

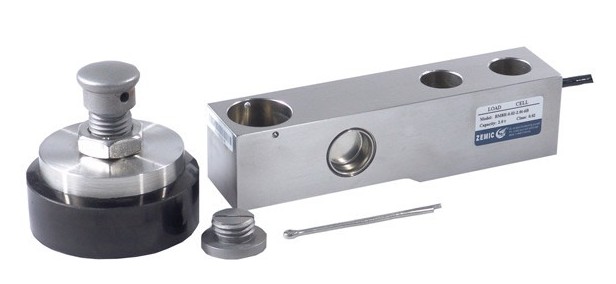

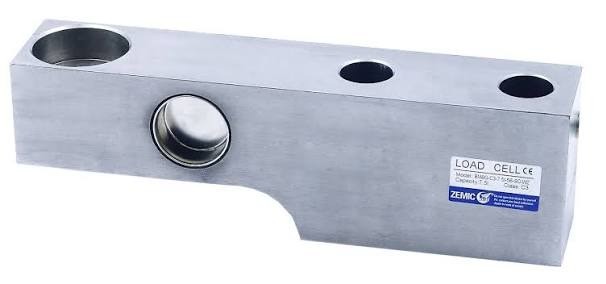

ZEMIC BM8G Shear Beam Load Cell
The ZEMIC BM8G Shear Beam Load Cell is a high-performance stainless-steel IP68 load cell designed for accurate and reliable weighing in demanding industrial environments. With a hermetically sealed construction, robust and wide mounting surface, and capacities from 500 kg to 10 tons, the BM8G is suitable for platform scales, floor scales, tank scales, container weighing systems and other industrial weighing applications.
Al Falah Weight Equip is a supplier of the Shear Beam Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC BM8G shear beam load cell
- Stainless-steel construction
- IP68 ingress protection
- Hermetically sealed
- Suitable for harsh environments

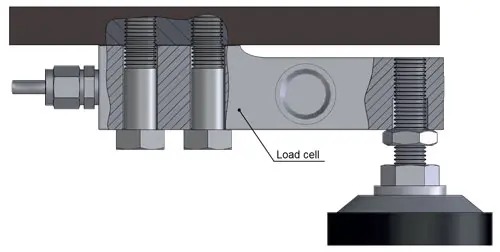

- Robust and wide mounting surface
- 500 kg to 10 ton capacity range
- 2.0 mV/V output sensitivity
- 350 Ω input and output resistance
- 150% safe overload
- 300% ultimate overload
- 5–15 V recommended excitation
Description
ZEMIC BM8G Shear Beam Load Cell for Industrial Weighing
The ZEMIC BM8G is a robust stainless-steel shear beam load cell engineered for precise weight measurement in industrial and commercial weighing systems. Its combination of stainless-steel construction, hermetic sealing and IP68 environmental protection makes it suitable for applications where load cells may be exposed to moisture, dust and harsh operating conditions.
ZEMIC specifies the BM8G for applications including platform scales, container scales and tank scales, while its shear beam design is also suitable for a variety of industrial weighing systems.
| Sr No | Model | Capacity | Accuracy |
| 1 | BM8G-C3-500kg-5B | 500 kg | C3 |
| 2 | BM8G-C3-1t-5B | 1 ton | C3 |
| 3 | BM8G-C3-2t-5B | 2 ton | C3 |
| 4 | BM8G-C3-5t-5B | 5 ton | C3 |
| 5 | BM8G-C3-7.5t-5B | 7.5 ton | C3 |
| 6 | BM8G-C3-10t-5B | 10 ton | C3 |
Applications
Platform Scales
Industrial and commercial weighing platforms using multiple load cells.
Floor Scales
Heavy-duty floor weighing systems requiring robust and environmentally protected load cells.
Tank Scales
Weighing tanks, vessels and process containers.
Hopper Scales
Industrial material handling and process weighing applications.
Container Weighing
Accurate weighing of industrial containers and vessels.
Silo Weighing
Suitable for appropriately designed silo and bulk-material weighing systems.
Industrial Weighing
General industrial weighing equipment operating in demanding environments.
Weighing & Logistics
ZEMIC identifies shear beam load cells as suitable for weighing systems used in logistics and industrial applications, including weighbridges.
