GIROPES G8RD DIGITAL COMPRESSION LOADCELL

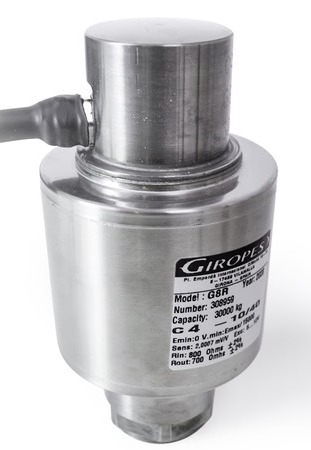

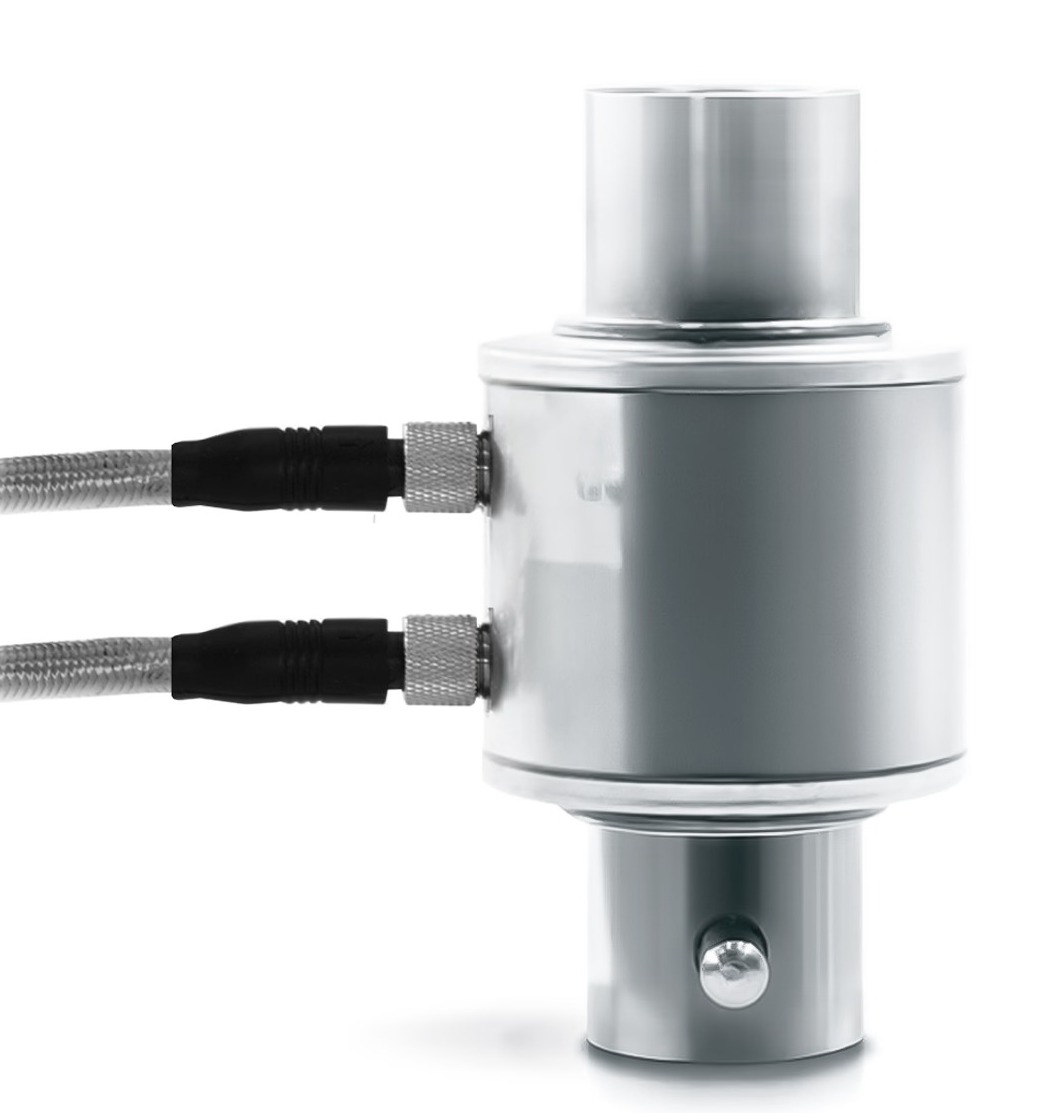

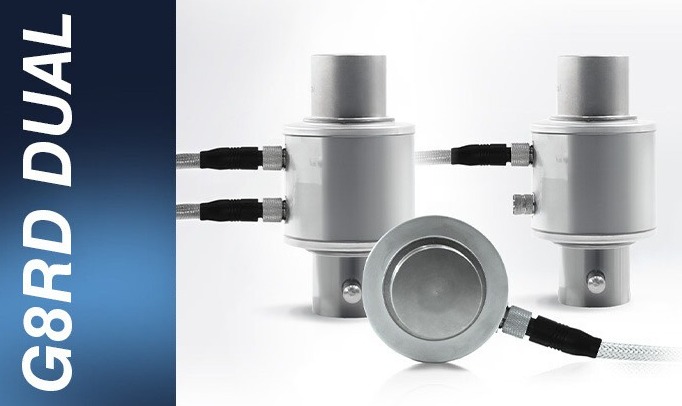

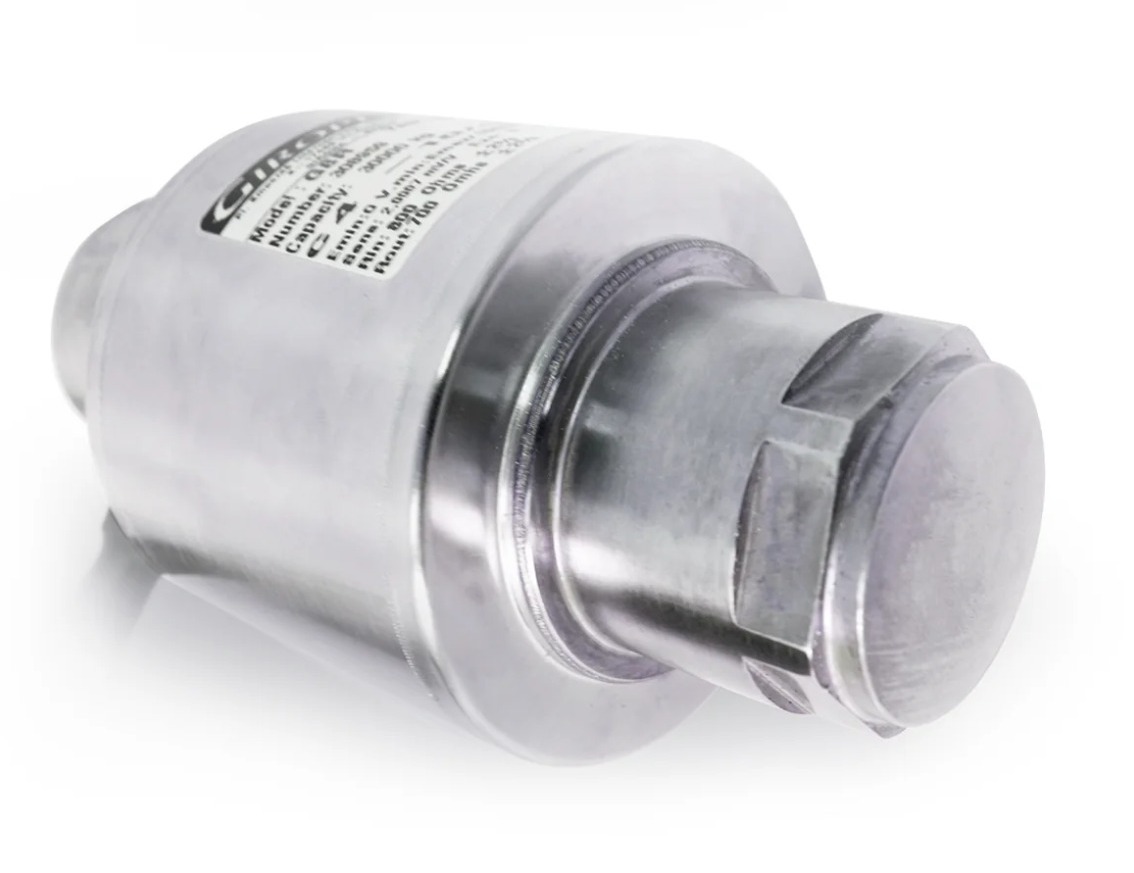

GIROPES G8RD Digital Stainless Steel Compression Load Cell
The GIROPES G8RD Digital Load Cell is a high-capacity digital compression load cell designed for truck weighbridges, vehicle scales, silos, hoppers and demanding industrial weighing applications. Featuring a stainless-steel construction, hermetically sealed IP69K protection, OIML R60 Class C4 accuracy and RS485 full-duplex digital communication, the G8RD provides accurate weighing together with individual cell diagnostics, software configuration and digital signal transmission. Available in capacities from 18 to 50 tons, it is engineered for reliable operation in demanding industrial environments.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- Brand: GIROPES
- Model: G8RD
- Type: Digital compression load cell
- Design: Self-centring pivoting column
- Capacity Range: 18–50 tonnes
- Available Capacities: 18 t, 20 t, 30 t, 40 t and 50 t
- Accuracy Class: OIML R60 Class C4
- Verification Intervals: 15,000 in current Giropes product listing
- Material: Stainless steel
- Protection Rating: IP69K
- Construction: Hermetically sealed
- Digital Interface: RS485 Full-Duplex
Description
GIROPES G8RD Digital Compression Load Cell for Weighbridges and Heavy-Duty Weighing
The GIROPES G8RD is a high-capacity digital compression load cell developed for weighing systems where accuracy, durability, diagnostics and digital connectivity are important. Its self-centring pivoting column design provides stable load transmission while supporting accurate weighing in high-capacity installations.
Giropes specifically positions the G8RD for truck weighbridges, while its current product information also identifies applications in high-capacity silos and hoppers. The load cell is available in capacities of 18 t, 20 t, 30 t, 40 t and 50 t and is specified to OIML R60 Class C4 with 15,000 verification intervals in the current product listing.
A major advantage of the G8RD is its integrated digital RS485 full-duplex interface. Instead of transmitting only a conventional analogue millivolt-per-volt signal, the load cell processes the measurement digitally and communicates with the weighing system through its serial interface. This enables features such as individual diagnostics, software configuration, software updates and easier commissioning and corner adjustment.
The G8RD is manufactured from stainless steel and is hermetically sealed with IP69K protection. This makes it particularly suitable for outdoor weighbridges and industrial installations exposed to moisture, dust and demanding cleaning conditions. Giropes also specifies protection against atmospheric electrical discharges through integrated surge protection.
| Sr No | Model | Capacity | Accuracy |
| 1 | G8R 30ACPD | 30 ton | C4 |
| 2 | G8R 40ACPD | 40 ton | C4 |
| 3 | G8R 50ACPD | 50 ton | C4 |
Applications
The GIROPES G8RD digital load cell is suitable for:
- Truck weighbridges
- Vehicle weighing scales
- Heavy-duty weighbridges
- Industrial weighing systems
- High-capacity silos
- Hopper weighing systems
- Tank weighing applications
- Industrial process weighing
- Large platform weighing systems
- Heavy industrial installations
- Digital weighbridge systems
- Weighbridges
