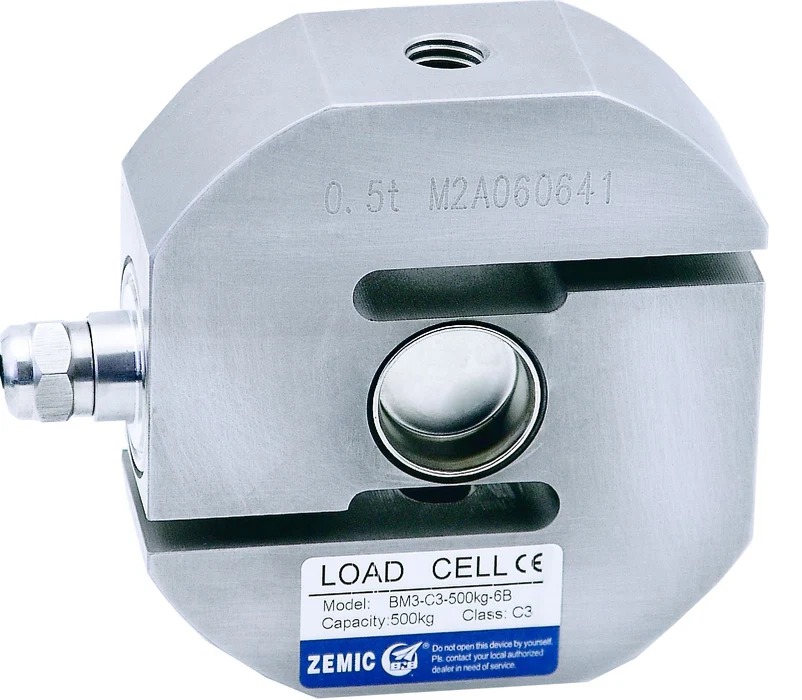

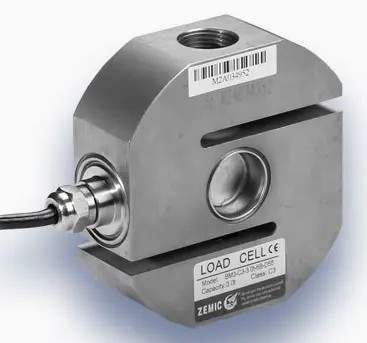

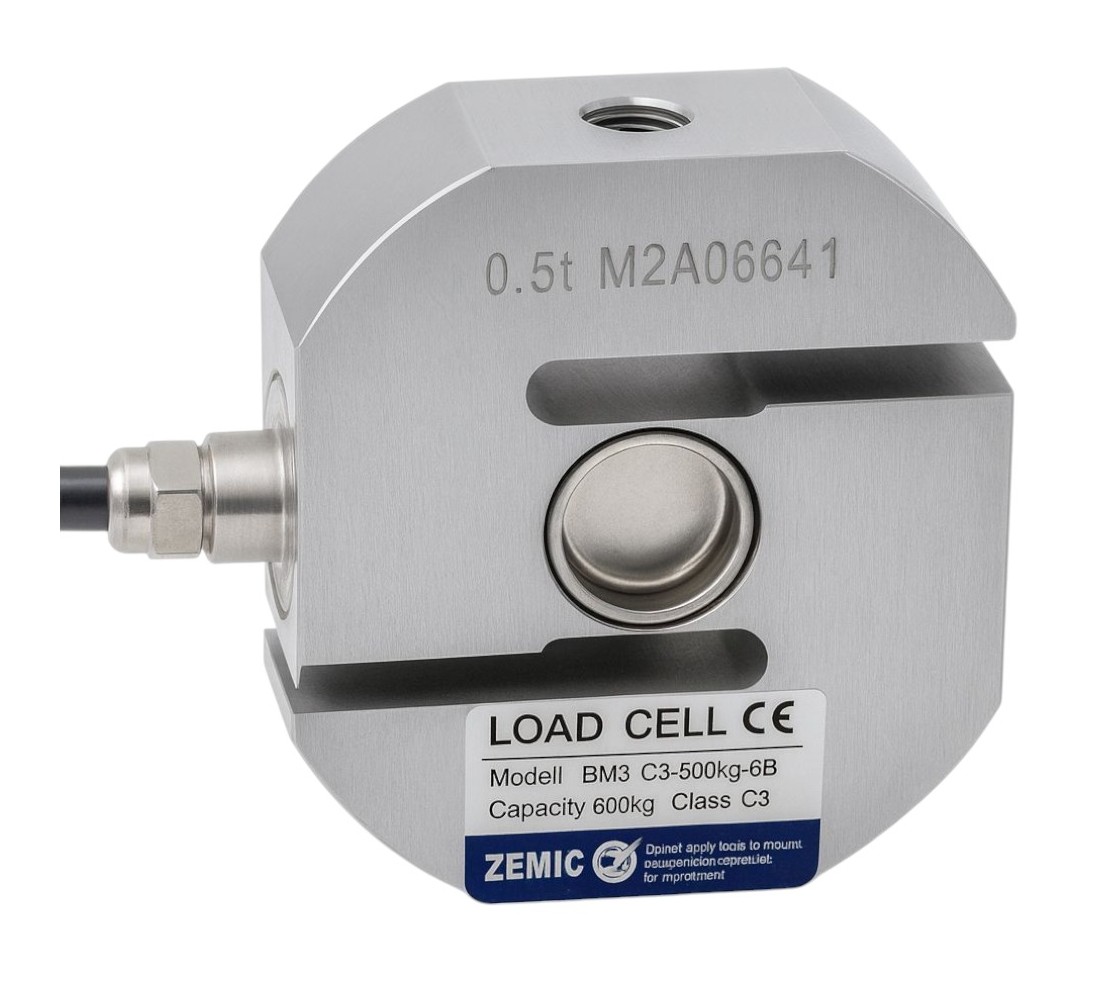

ZEMIC BM3 S-TYPE LOADCELL
ZEMIC BM3 S-Type Load Cell for Industrial Weighing
The ZEMIC BM3 S-Type Load Cell is a robust stainless-steel, hermetically sealed IP68 load cell designed for accurate weighing and force measurement in demanding industrial environments. With a capacity range of 50 kg to 7.5 ton, the BM3 supports both tension and compression applications and is suitable for hanging scales, hopper scales, crane weighing systems, suspended weighing equipment, tank and container weighing systems, and other industrial weighing applications.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- ZEMIC BM3 S-Type Load Cell
- Stainless-steel construction
- IP68 protection
- Hermetically sealed
- S-type design
- Tension and compression measurement
- 50 kg to 7.5 ton capacity range
- OIML R60 C3 configurations
- Suitable for hanging weighing
- Suitable for hopper scales
- Suitable for crane scales
- Suitable for suspended load weighing
- Suitable for tank and container weighing
- Suitable for industrial weighing systems
Description
ZEMIC BM3 S-Type Load Cell for Industrial Weighing
The ZEMIC BM3 is a high-quality stainless-steel S-type load cell developed for reliable weight and force measurement in industrial weighing systems.
Its distinctive S-shaped construction allows the BM3 to measure forces in both tension and compression, making it suitable for suspended and hanging weighing applications as well as other systems where the load direction can involve pulling or pushing forces.
ZEMIC specifies the BM3 as an IP68 stainless-steel S-type load cell with a capacity range of 50 kg to 7.5 ton.
| Sr No | Model | Capacity | Accuracy |
| 1 | BM3-C3-50kg-6B | 50 kg | C3 |
| 2 | BM3-C3-100kg-6B | 100 kg | C3 |
| 3 | BM3-C3-150kg-6B | 150 kg | C3 |
| 4 | BM3-C3-200kg-6B | 200 kg | C3 |
| 5 | BM3-C3-250kg-6B | 250 kg | C3 |
| 6 | BM3-C3-0.5t-6B | 500 kg | C3 |
| 7 | BM3-C3-1t-6B | 1 ton | C3 |
| 8 | BM3-C3-2t-6B | 2 ton | C3 |
| 9 | BM3-C3-3t-6B | 3 ton | C3 |
| 10 | BM3-C3-5t-6B | 5 ton | C3 |
| 11 | BM3-C3-7.5t-6B | 7.5 ton | C3 |
| 12 | BM3-C3-10t-6B | 10 ton | C3 |
Applications
Hanging Scales
For suspended weighing systems where the load is applied through tension.
Hopper Scales
For bulk-material, batching and process weighing.
Crane Scales
For appropriately designed crane and suspended load weighing systems.
Tank & Container Weighing
For smaller tanks, containers and suspended vessels.
Big-Bag Weighing
For suitable suspended bulk-bag weighing systems.
Hybrid Weighing Systems
For systems using multiple load cells and mechanical weighing structures.
Industrial Force Measurement
For measuring tension and compression forces in industrial applications.
