ZEMIC H2F STEEL SPOKE LOADCELL

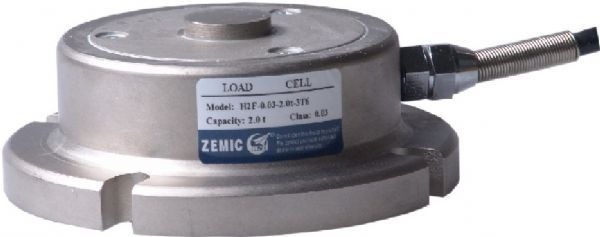

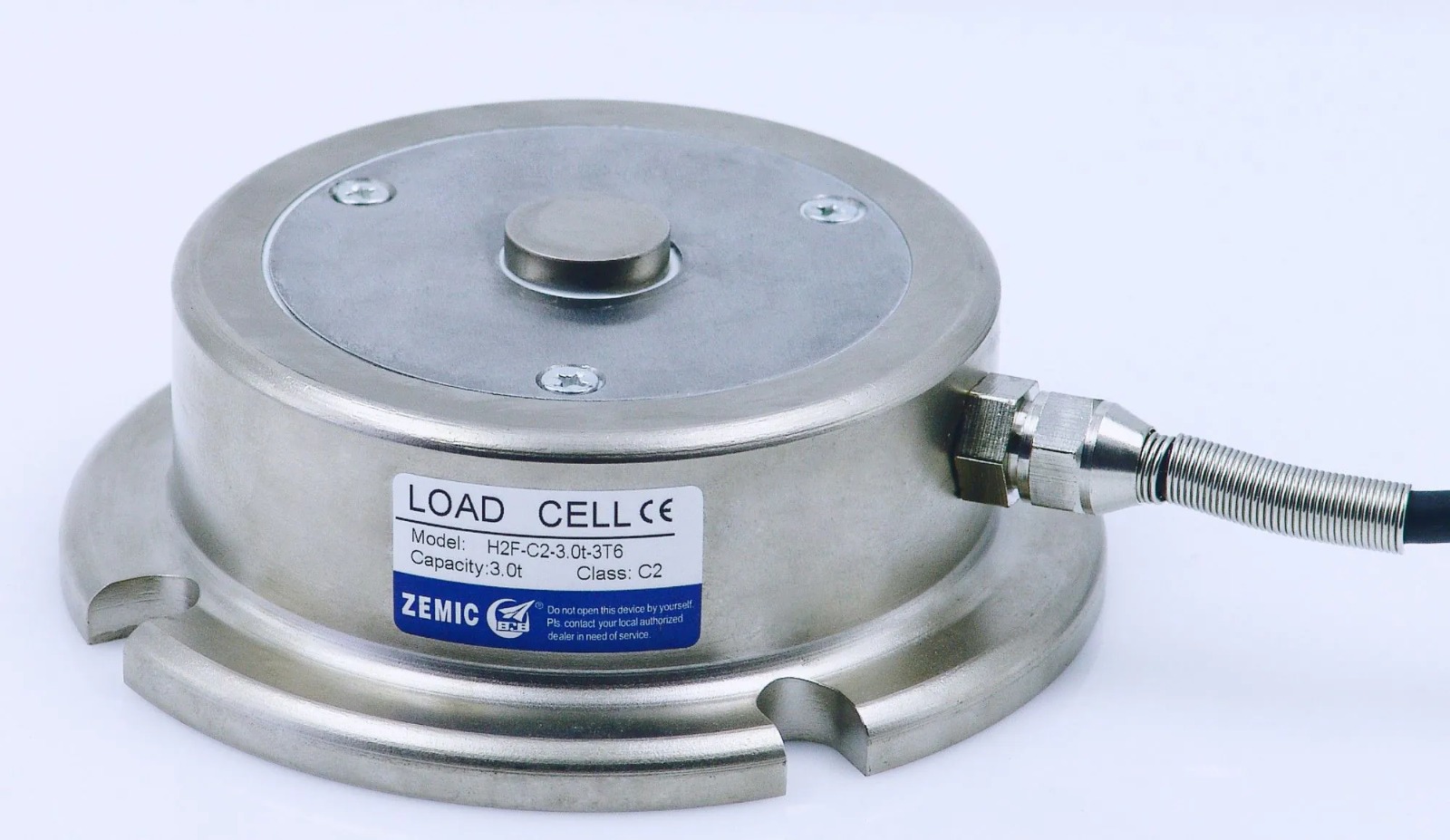

ZEMIC H2F Nickel-Plated Alloy Steel Spoke Type Load Cell
The ZEMIC H2F Load Cell is a high-accuracy, low-profile spoke-type compression load cell manufactured from nickel-plated alloy steel. Available in capacities from 1 ton to 50 tons, the H2F features IP67 environmental protection, a sealed construction and reliable performance for demanding industrial weighing applications. It is suitable for hopper scales, tank weighing systems, hanging weighing equipment, platform systems and other electronic weighing applications. C1, C2 and C3 accuracy options are available depending on capacity and model.
Al Falah Weight Equip is a supplier of the S Type Load cell in the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, and the Northern Area.
Key Features
- Brand: ZEMIC
- Model: H2F
- Load Cell Type: Spoke type / pancake compression load cell
- Material: Nickel-plated alloy steel
- Capacity Range: 1 t to 50 t
- Accuracy Classes: C1, C2 and C3 depending on capacity
- Ingress Protection: IP67
- High accuracy: Designed for industrial weighing applications
- Sealed construction: Helps prevent air and water penetration
- Low-profile design: Suitable where compact installation is required
Description
ZEMIC H2F Nickel-Plated Alloy Steel Spoke Type Load Cell
The ZEMIC H2F is a robust spoke-type compression load cell designed for accurate force measurement in industrial weighing systems. Its low-profile spoke or pancake-style construction provides a compact solution where installation height and mechanical stability are important considerations.
Manufactured from nickel-plated alloy steel, the H2F is designed for demanding industrial environments. Its IP67 protection and sealed construction help protect the load cell against dust and water ingress, making it suitable for a wide range of industrial weighing applications.
The H2F is available in capacities ranging from 1 t to 50 t. Depending on the selected capacity, models are available in OIML accuracy classes C1, C2 and C3. For example, the 1 t, 2 t and 3 t versions are available with C1/C2/C3 options; 5 t and 10 t versions are available in C1/C2 configurations; and 15 t through 50 t models are available in C1.

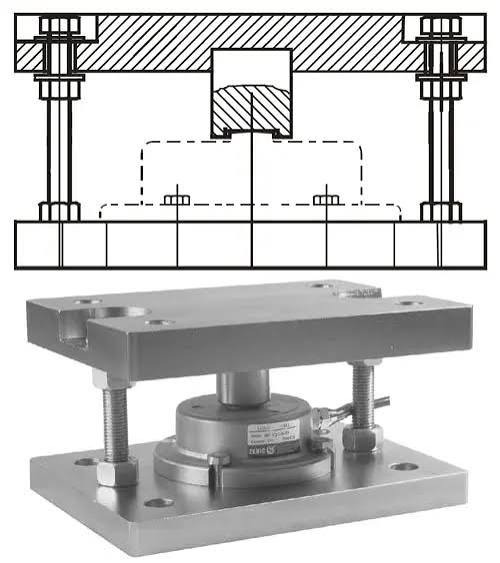

The compact design and compression-loading configuration make the ZEMIC H2F load cell particularly suitable for hopper, tank, silo and hanging weighing applications, as well as other heavy-duty electronic weighing equipment. ZEMIC also specifies the HM-2-401 mounting assembly as compatible with H2F load cells.
| Sr No | Model | Capacity | Accuracy |
| 1 | H2F-C3-1t-3T6 | 1 ton | C3 |
| 2 | H2F-C3-2t-3T6 | 2 ton | C3 |
| 3 | H2F-C3-3t-3T6 | 3 ton | C3 |
| 4 | H2F-C3-5t-4T6 | 5 ton | C3 |
| 5 | H2F-C3-10t-4T6 | 10 ton | C3 |
| 6 | H2F-C3-20t-5T6 | 20 ton | C3 |
Applications
The ZEMIC H2F compression load cell is suitable for:
- Hopper weighing systems
- Tank weighing systems
- Silo weighing systems
- Hanging weighing equipment
- Industrial weighing systems
- Process weighing applications
- Heavy-duty electronic weighing equipment
- Platform and structural weighing systems
- Custom weighing machinery
- High-capacity weighing installations
ZEMIC specifically identifies hanging, hopper and other electronic weighing devices as applications for the H2F.
